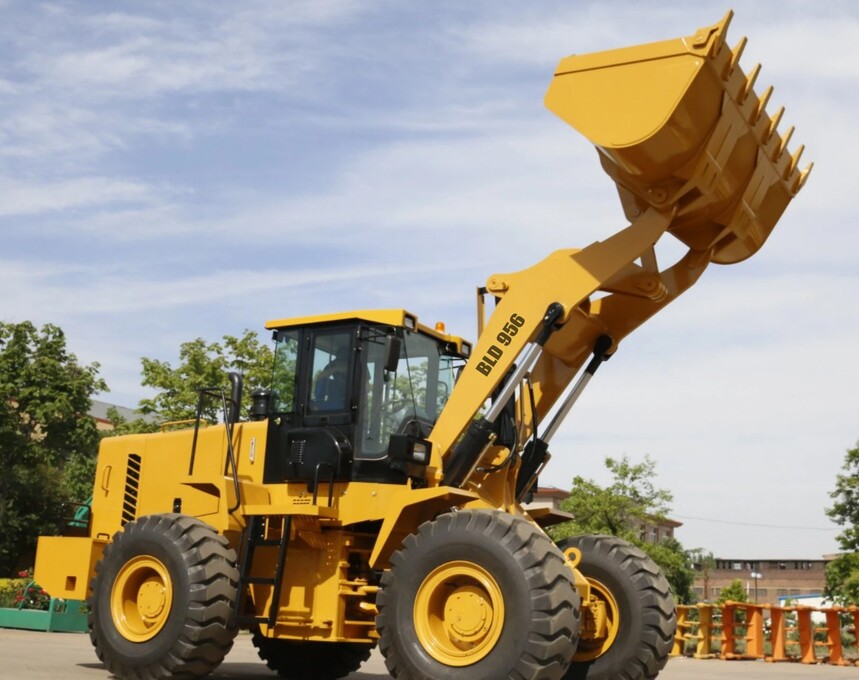

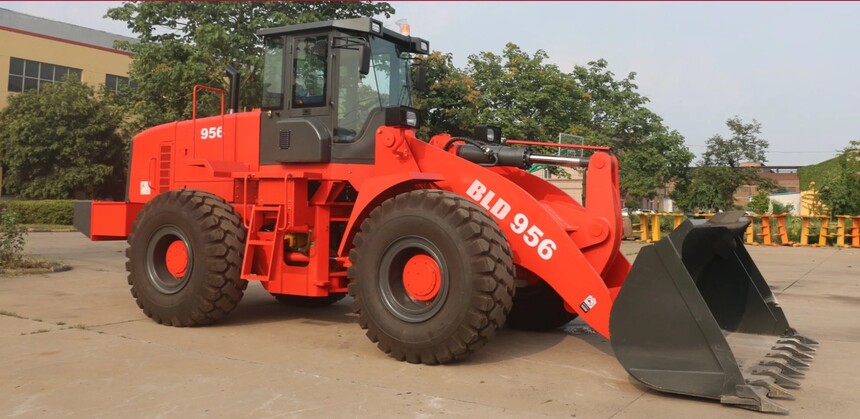

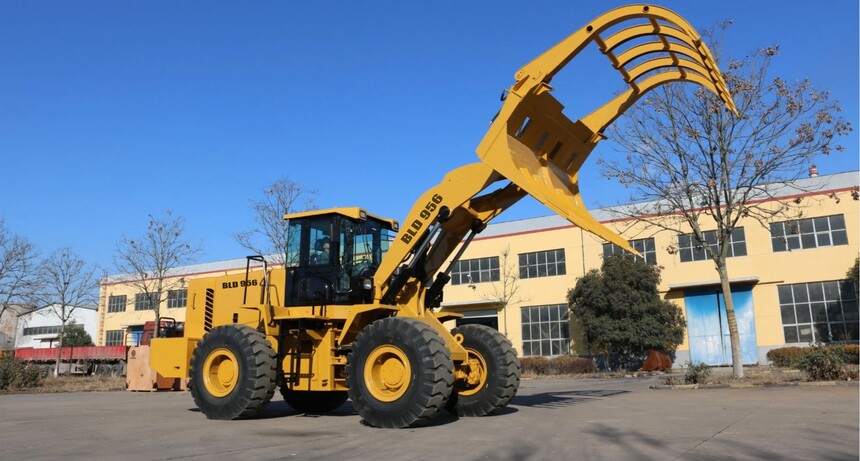

BLD956

Specification:

Performance	Rated load	5000kg
	Overall weight	17100kg
	Rated bucket capacity	3m3
	Maximum dump height	3150mm
	Maximum dump reach	1250mm
	Overall dimension (L×W×H)	7920×3050×3400mm
Engine	Model	Weichai WD10G220E22 Shangchai SC11CB220G2B1 Cummin6CTA8.3-C215
	No. of cylinder-bore/stroke	6-126×130mm
	Rated power	162kw--2200r/min
Transmission system	Torque converter	YJ375
	Gearbox mode	Planetary
	Gear shift	2 forward shift 1reverse shift
	Maximum speed	38km/h
	Wheel base (mm)	3200mm
	Wheel tread	2250mm
Tyre	Type specification	23.5-25
