BLD910
Standard configuration:

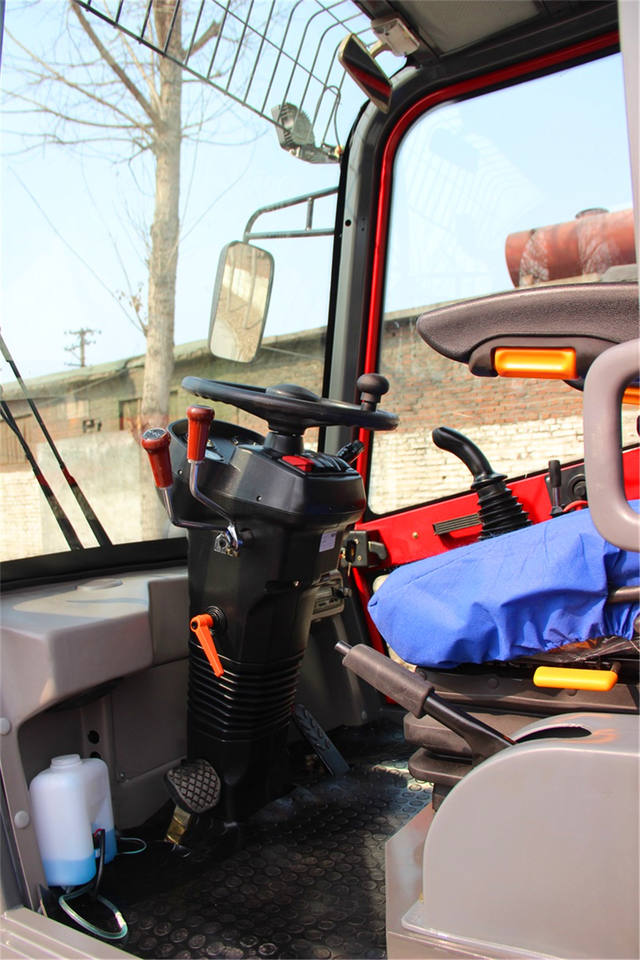

Changchai ZN490B engine 39kw, 4WD, 900-16 tires, joystick, standard bucket, VARTA Battery, floating function, luxury cabin with heater, new engine hood, 220V engine preheat, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher,
window hammer, Free parts, tool box.Standard with 3 hydraulic lines
Optional:
Imported engine, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line,
electronic joystick, different attachments etc.
Technical Specifications:
Specification | Overall Weight(Kg) | 3300 |
L×W×H(Mm) | 4750x1700x2600 |
Rated Bucket Capacity(M3) | 0.6 |
Rated Load(Kg) | 1000 |
Wheel Base | 2080mm |
Track Base | 1400mm |
Maximum Dump Height (Mm) | 2300mm |
Engine | Model | Changchai 490 |
Rated Power(Kw) | 39 |
Rated Speed(R/Min) | 2200 |
Type | In-Line Arrangement, Water Cooled, Three-Cycle Diesel Engine |
Engine Starting Mode | Electric |
Optional engine | Xinchai C490BPG Euro III
Yanmar 4TNV94L |
Steering System | Type | Articulated And Hydraulic Steering |
Min Turning Radius(Mm) | 4200 |
Tyres | Standard Tyres | 900-16 |
Optional Tyres | 12-16.5/20.5-16
31x15.5-15 |
