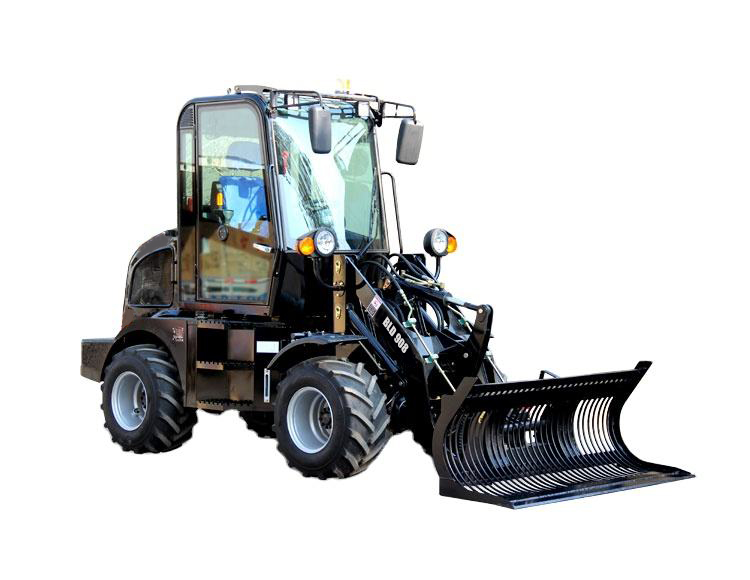

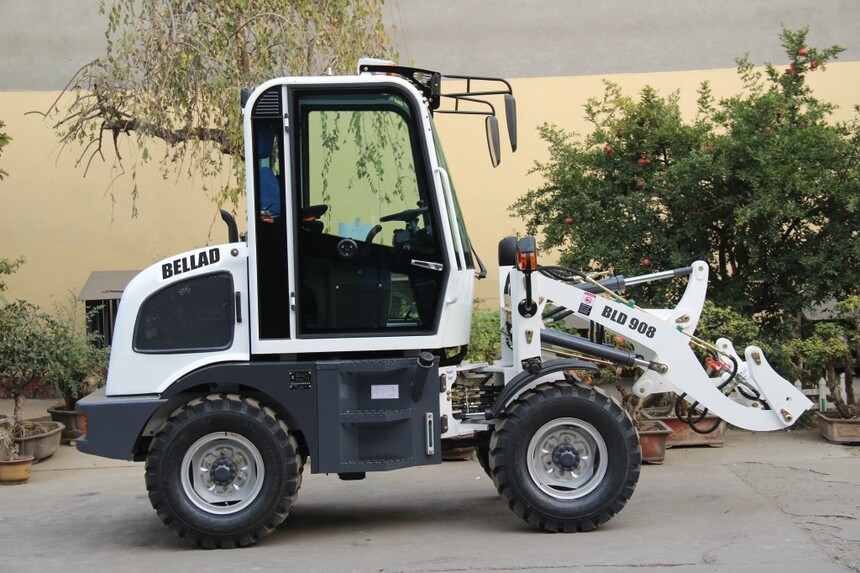

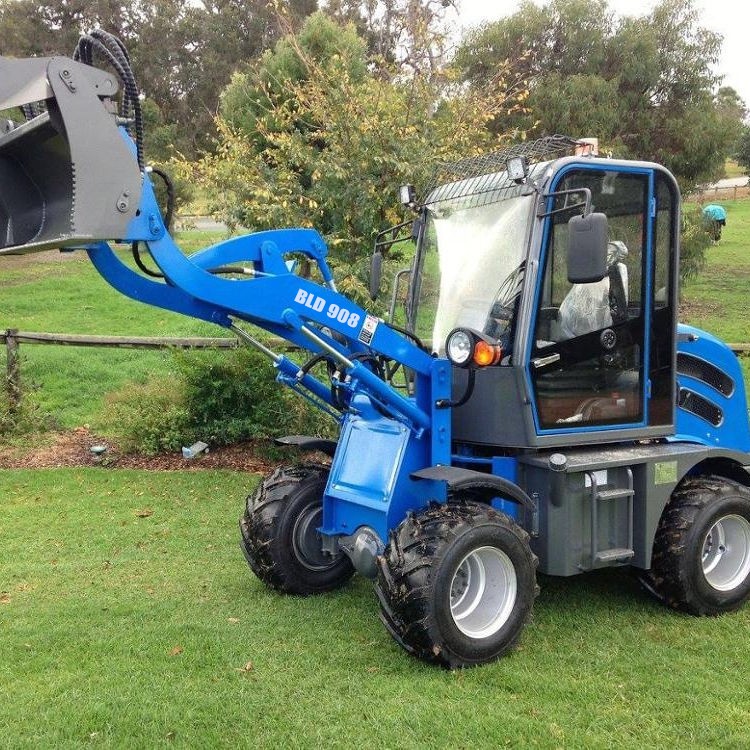

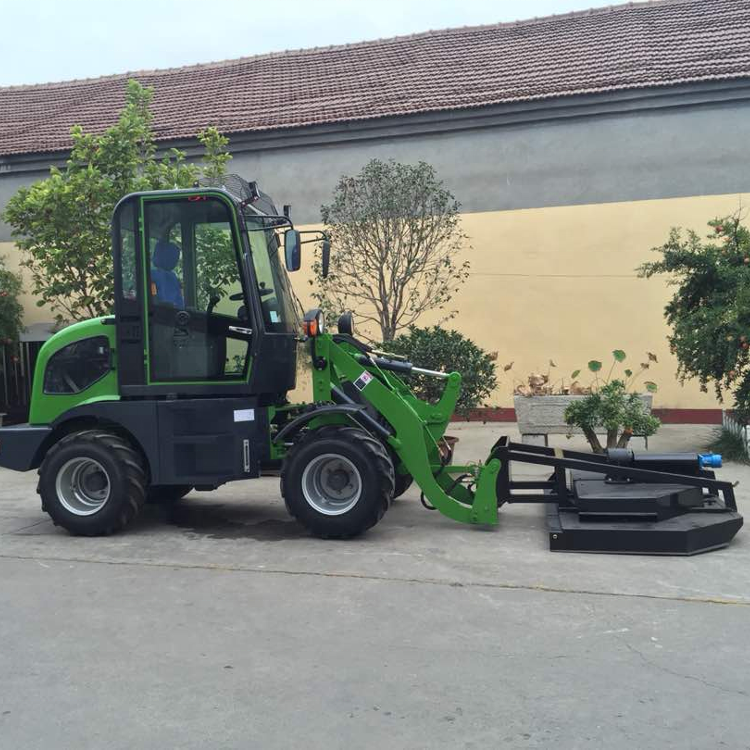

BLD908
BLD908 mini loader, hydraulic torque conveter, hydraulic transmission,
Changchai ZN390Q engine, 4WD, 750-16 tire, joystick, standard bucket, VARTA Battery,

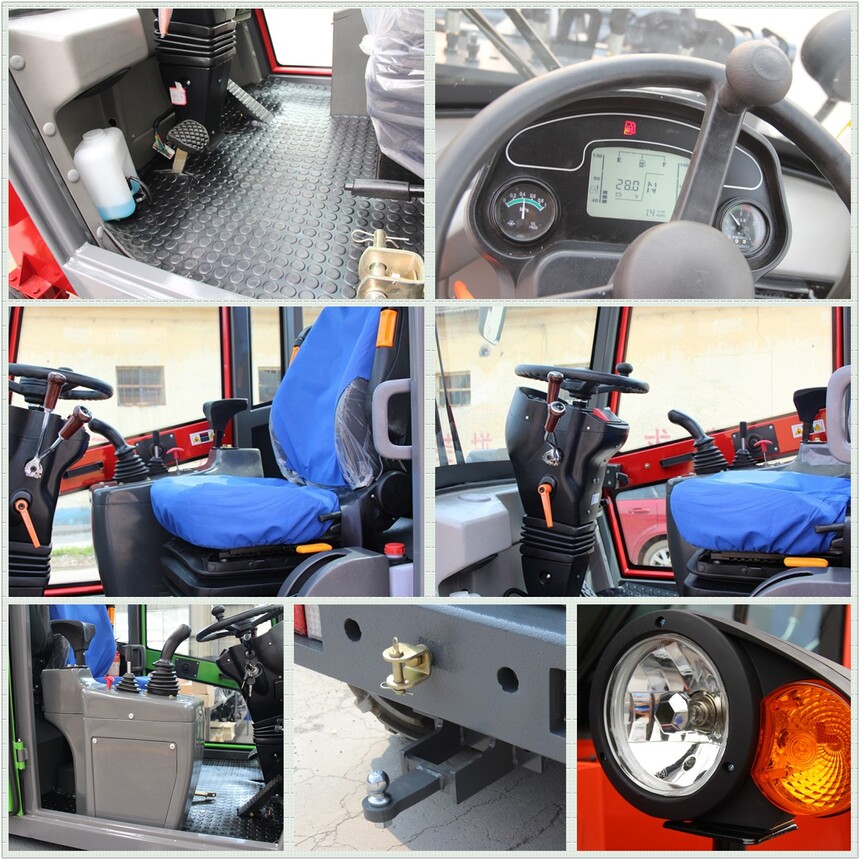

floating function, luxury cabin with heater, 220V engine preheat, warning light,
adjustable steering wheel and seat, bucket can be level automatic, back sound,
radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.
Standard with 3 hydraulic lines, LED lights on cab.
Basic Parameters | overall weight(kg) | 2700 |
| L×W×H(mm) | 4300×1600×2570MM |
| rated bucket capacity(m3) | 0.6 |
| Rated load(kg) | 800 |
| dump height (mm) | 2140 |
| Lifting height(mm) | 2630 |
| Dump distance | 700mm |
| Wheelbase | 1875mm |
| Thread | 1245mm |
| Total time | 11s |
Engine | Standard Model | Changchai 390 |
| Type | direct injection, horizontal, water-cooled, four stroke, 3 cylinders |
| Rated power(KW) | 25KW |
| Rated speed(r/min) | 2200 |
| Optional model | Xinchai C490BPG Euro 3
Yanmar or Perkins Euro 5 |
Working system | Distribution of work valve | DF15.2C |
| Working pump | CBF32 |
Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 280±1 |
| Min turning radius(mm) | 2915 |
Tires | Standard tires | 750-16 |
| Optional tires | 10-16.5
31X15.5-15 |
