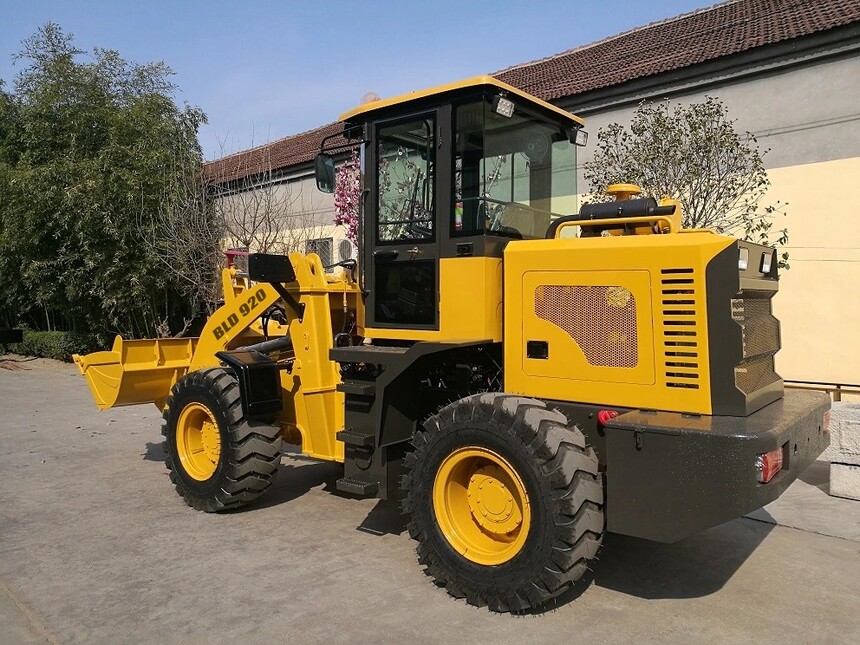

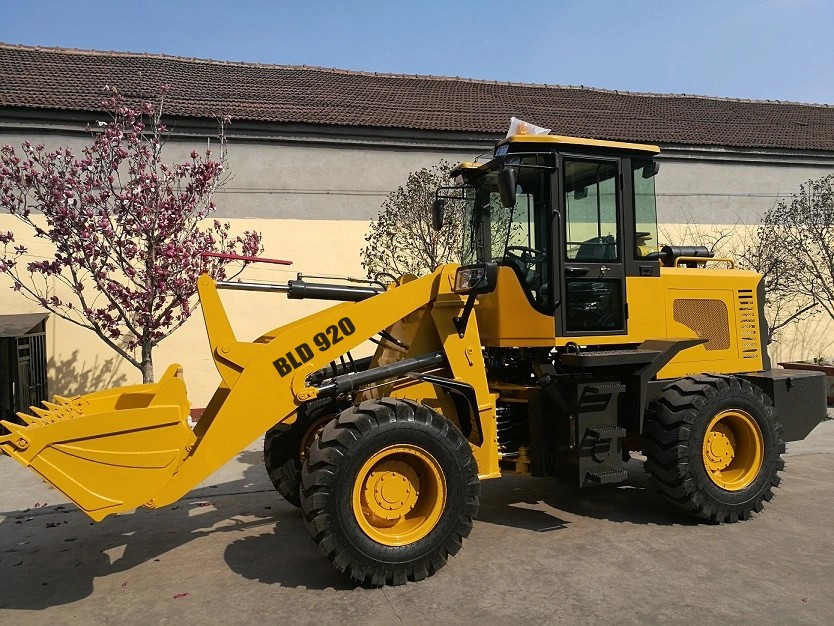

BLD920

Specification	overall weight(kg)	5000
	L×W×H(mm)	6000×2050×2900
	rated bucket capacity(m3)	1.0
	Rated load(kg)	2000
	Maximum dump height (mm)	3100/3500
	Bucket indicator	Yes
Engine	Model	CHANGCHAI 4G33
	Type	Vertical, In-line , Water cooling, four-stroke diesel engine
	Rated power(kw)	70kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280A
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Working pressure	16Mpa
	Boom lifting time	4.8s
	Fuel tank capacity	80L
Steering system	Type	hydraulic steering
	Min turning radius(mm)	5248
Tyres	Standard tyres	16/70-20
