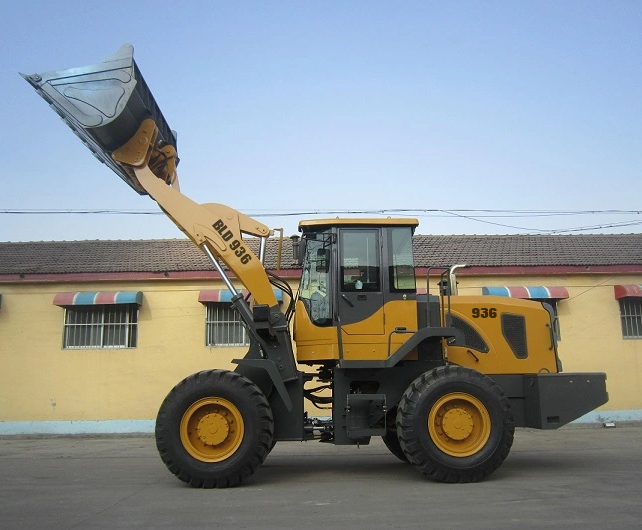

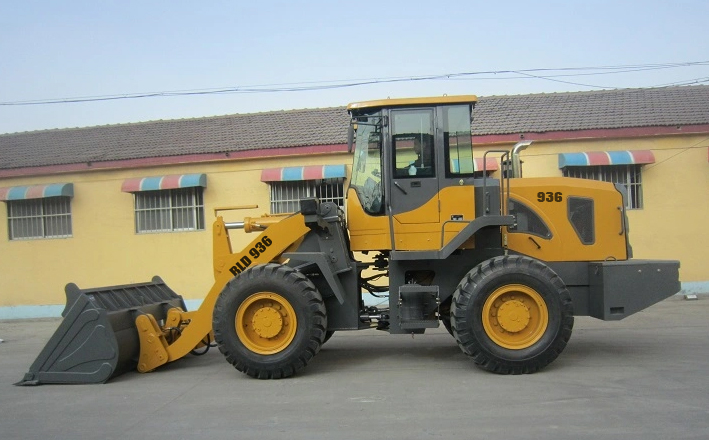

BLD936

Overall weight

9700kg

Bucket capacity

1.7-2.5m3

Maximum dump height

3100mm

Maximum dump reach

1006mm

Overall dimension (L×W×H)

7200*2470*3100 Mm

Minimum turning radius

5097mm

Engine

Model

DEUTZ TD226B
CUMMIN 6BT5.9-C130

Type

Vertical, in-line, water cooled, 4-stroke diesel engine

NO. of cylinder-bore*stroke

6-108*125

Rated power

92/97kw-2200r/min

Transmission system

Torque converter

HangChi 428

Gearbox mode

Power shaft normally engaged straight gear

Gears

2forward  1 reverse

Maximum speed

40km/h

Hydraulic system

System working pressure

16,5MPa

Boom lifting time

4.83

Total time

9.15±0.5s

Brake system

Service brake

Air assist disc brake on 4 wheels

Parking brake

Manual disk brake

Tyre

Type specification

17.5-25

Front tyre pressure

0.4Mpa

Rear tyre pressure

0.35Mpa
