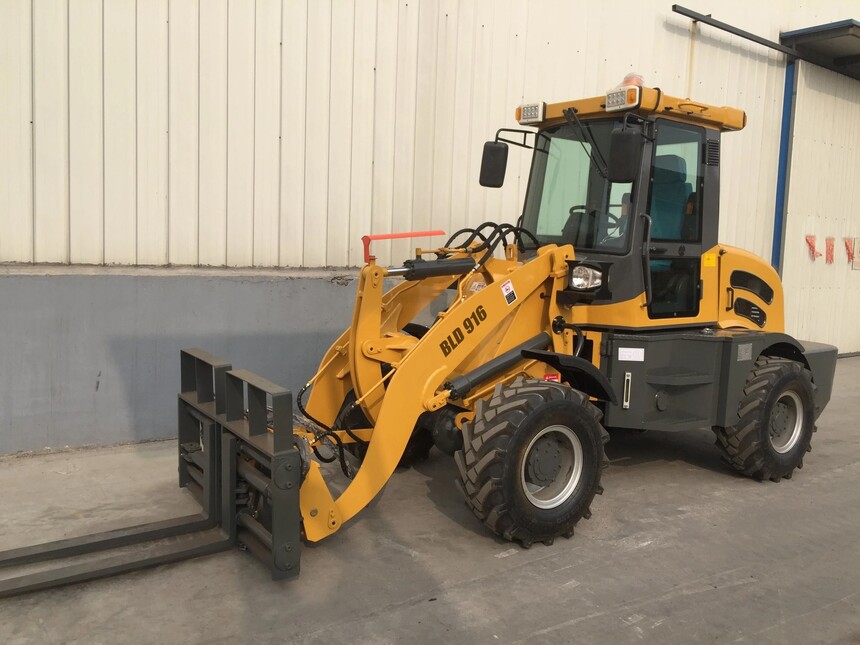

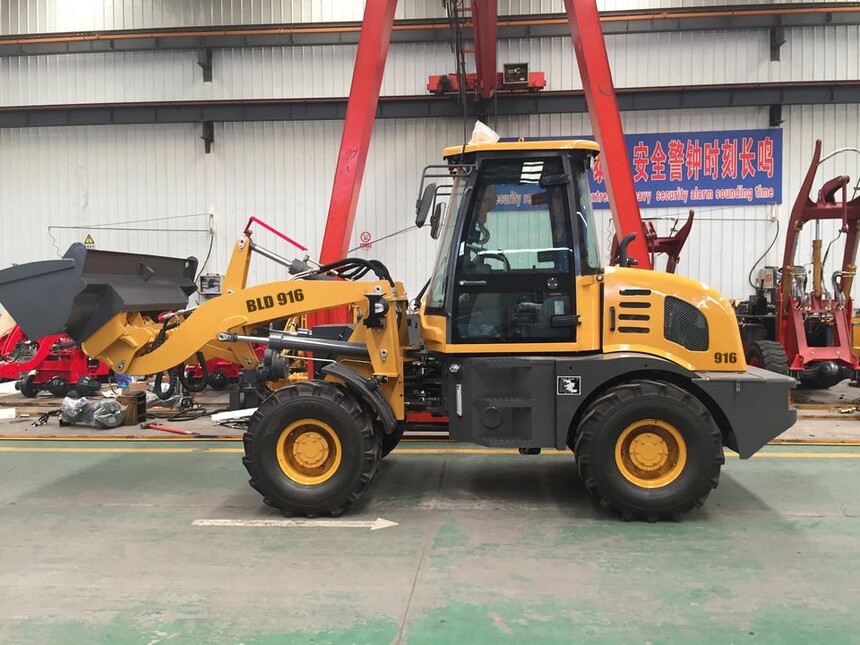

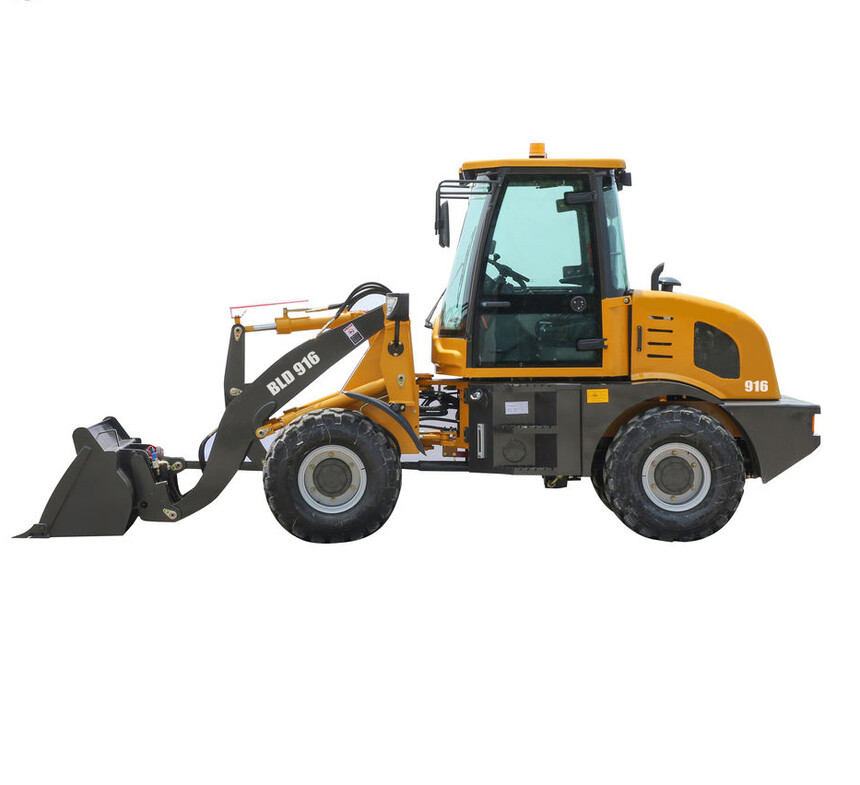

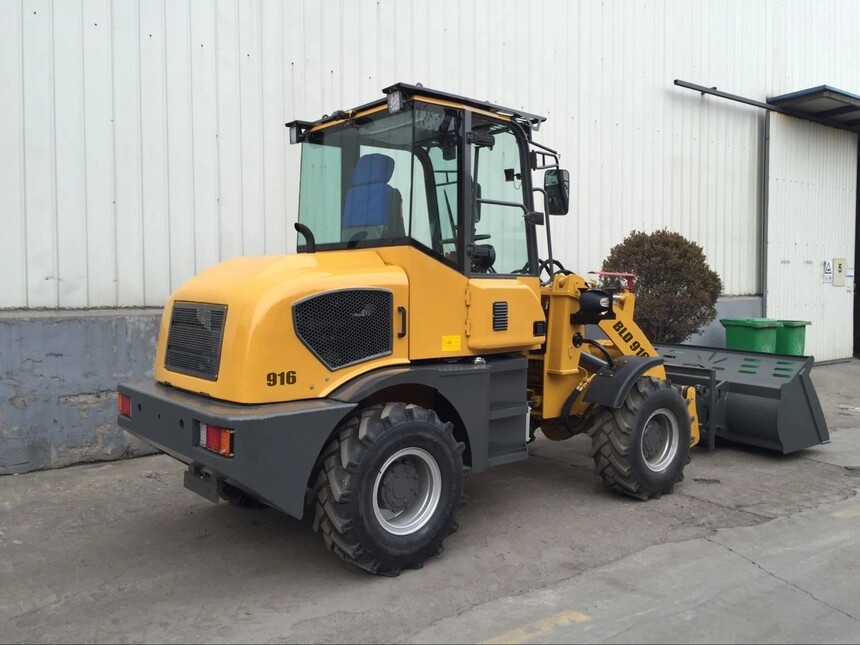

BLD916

Specification	Overall Weight(Kg)	3800
	L×W×H(Mm)	5280×1700×2580
	Rated Bucket Capacity(M³)	0.7
	Rated Load(Kg)	1600
	Maximum Dump Height (Mm)	2850
	Bucket Indicator	Yes
	Max. Breakout Force(KN)	43
Engine	Standard Model	Xinchai 490
	Type	In-Line Arrangement, Water Cooling, Four-Stroke
	Rated Power(Kw)	39KW
	Rated Speed(R/Min)	2200
	Optional Engine	Xinchai A498BT1 Euro III Xinchai Euro V Yanmar
Transmission System	Model Of Torque Converter	YJ240
	Type	Single-Phase Single-Stage Radial-Inward Turbine Triplex
	Gearbox Type	Fixed-Spindle Power Shift
	Gear Shift	2 Gears Ahead,2 Gear Astern
Hydraulic System	Distribution Of Work Valve	ZL20B
Hydraulic System	Working Pump	Cbgj1045,Cbgq1018
Steering System	Type	Articulated Hydraulic Steering
	Max. Turning Angle	27±1°
	Min Turning Radius(Mm)	3000
Brake System	Brake Type	Oil Brake(Vacuum Booster)
Tyres	Standard Tyres	20.5-16 agricultural
Tyres	Optional Tyres	23.5-16 agricultural
