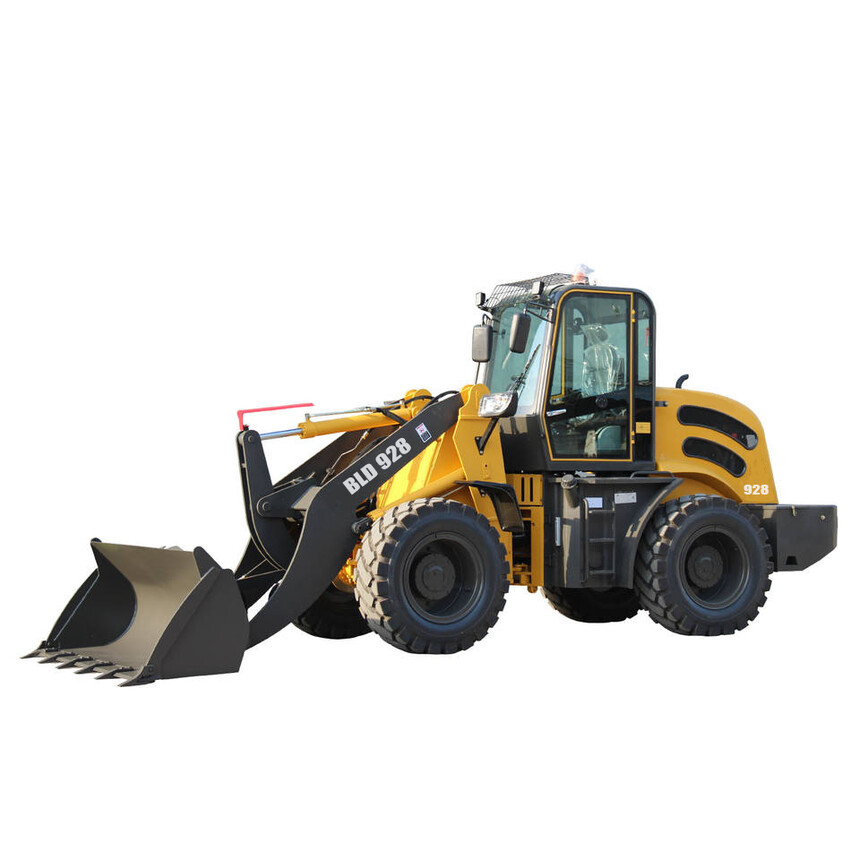

BLD928

L×W×H(mm)

6700x2150x2900

rated bucket capacity(m3)

1.2

Rated load(kg)

2800

Maximum dump height (mm)

3200/3500

Bucket indicator

Yes

Max. breakout force(KN)

48.8KN

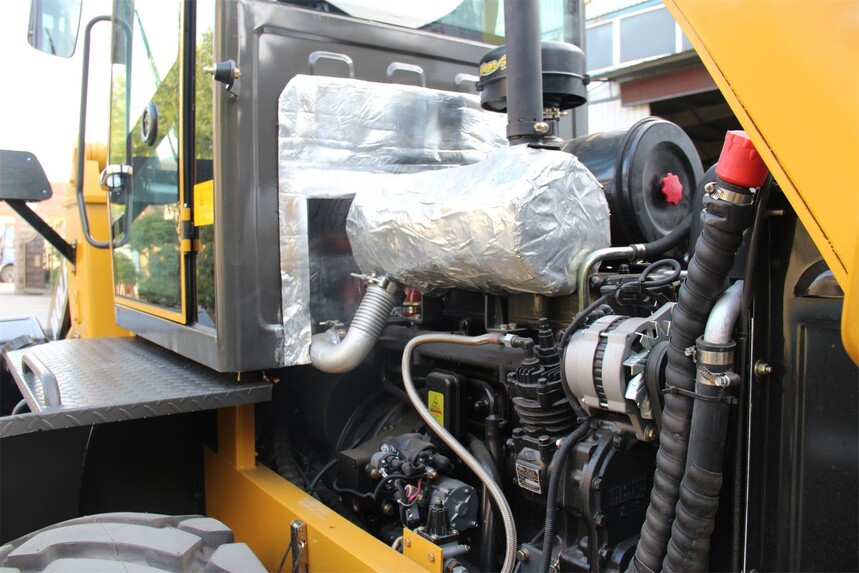

Engine

Model

YT4a2z-24

Type

      In-line arrangement, direct injection,

           Water cooling, four-stroke

Rated power(kw)

85kw

Rated speed(r/min)

2400

Transmission    system

Model of torque converter

YJ280

Type

single grade three componets

Gearbox type

Fixed-spindle power shift

Gear shift

2 gears ahead,2 gear astern

  Hydraulic system

Distribution of work valve

  DF20.2C

Working pump

CBF18

   Steering system

Type

Articulated hydraulic steering

Max. turning angle

                            35±1°

Min turning radius(mm)

4500

    Brake system

Brake type

Air assisted oil disc on four wheel

          Tyres

Standard tyres

16/70-24

Optional wide tyres

16/70-24 snow tires
