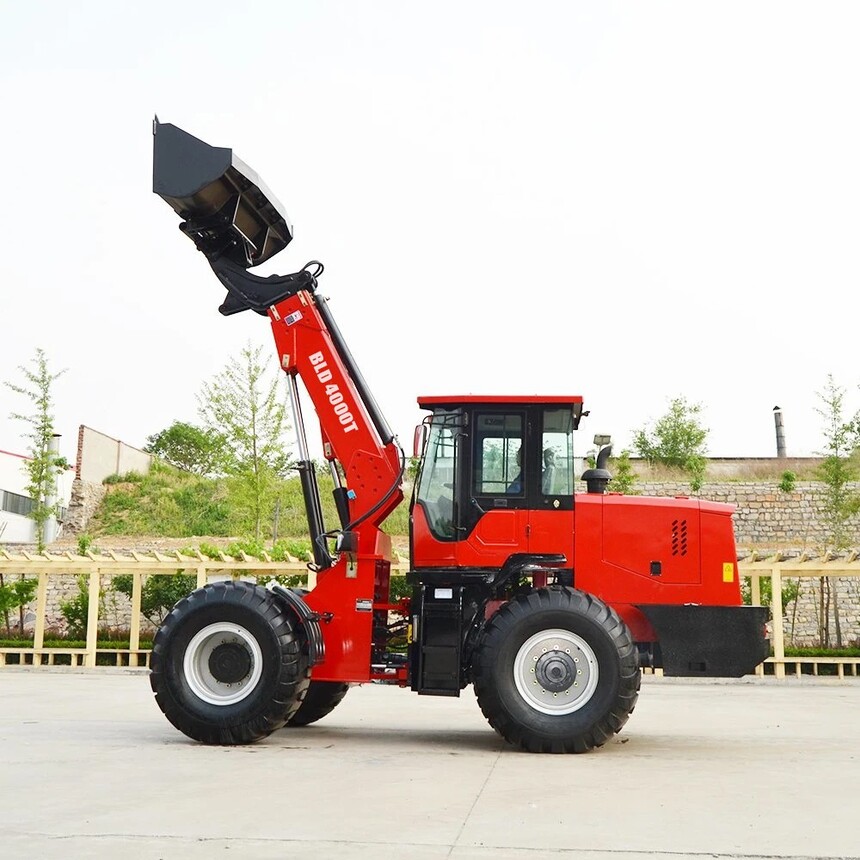

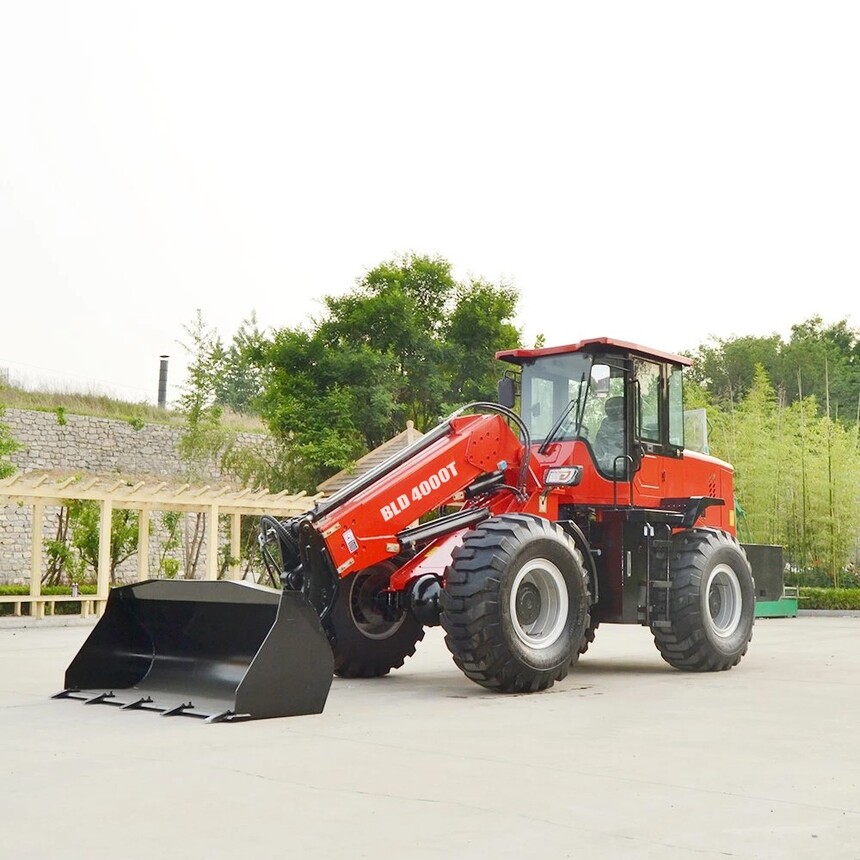

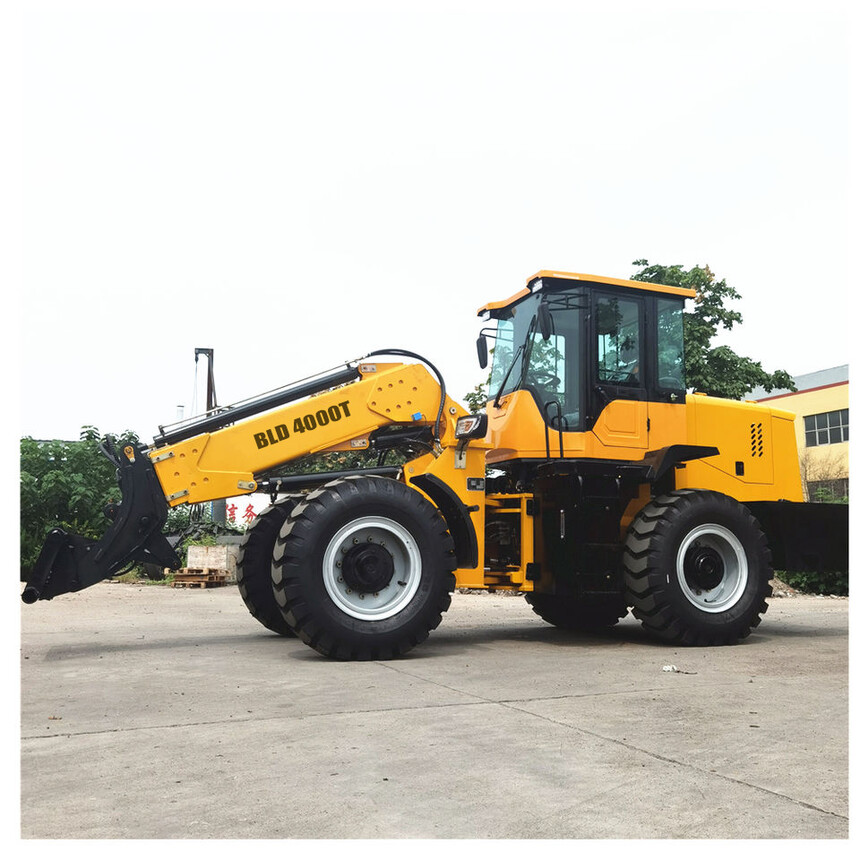

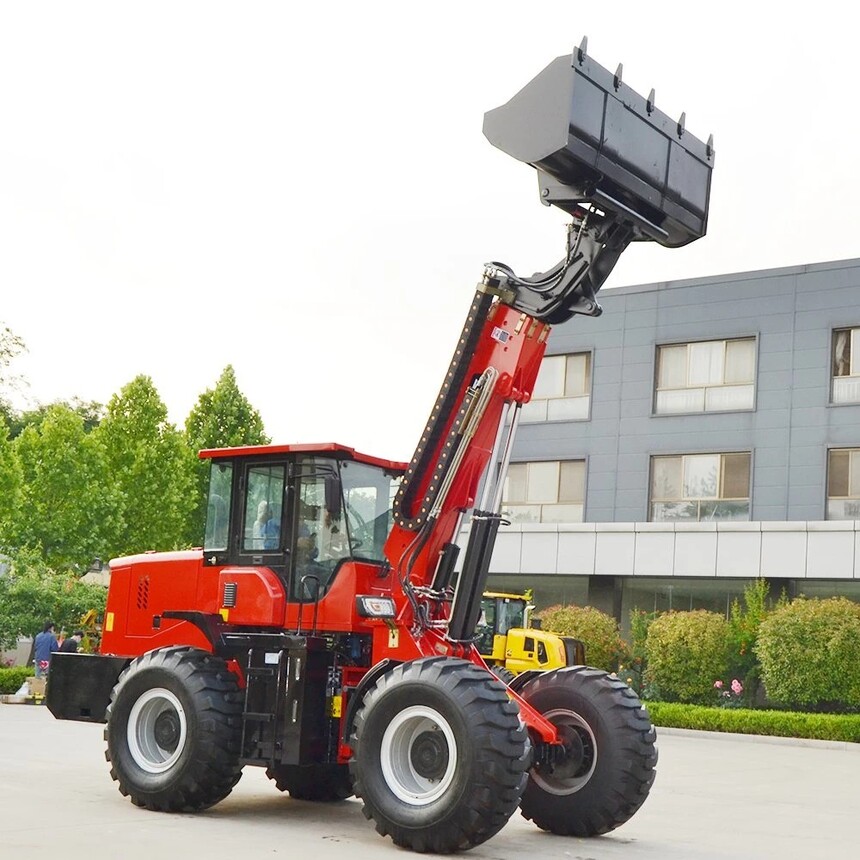

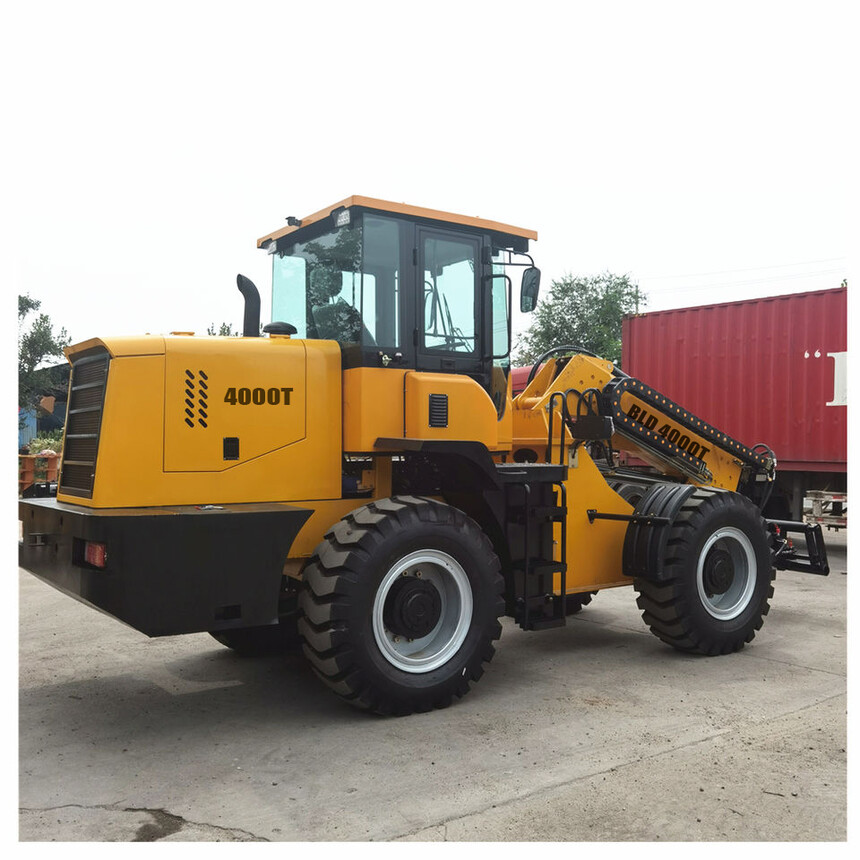

BLD4000T
Main Features
1. Equipped with YUCHAI engine, optional WEICHAI engine,YUNNEI engine, CUMMINS engine.
2. According to clients request, customize higher dumping and longer arm products.
3. Strong and durable frame, have the automatic flat function in high place.
4. (Quick change )option attachment:wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc.
5. Optional luxurious meter, air conditioner, back camera, more comfortable for driving.
6. High pressure and safer air assist disc brake braking system.
Model | BLD4000T |
Engine Details | Engine model | WEICHAI |
Engine power | 129KW |
Engine cooling way | Water cooling |
Engine type | Electronic Unit Injector Engine |
Bucket | Bucket Capacity | 2m3 |
Bucket width | 2420mm |
Bucket type | Heavy-duty bolt on teeth |
Overall Dimensions | Overall Length | 7150mm |
Overall Height: | 3200mm |
Overall Width | 2300mm |
Tyre | Model | 17.5-25 |
Brake System | Service Brake | Four Wheel Disk brake |
Parking Brake | Hand operated |
Braking Type | Air over hydraulic booster |
Axle | With big hub reducer |
Max. Lifting Height | 5530mm |
Max.dumping height | 4480mm |
Rated Load | 4000kg including attachment |
Transmission System | Hydraulic Converter + Drive Shaft + Axles |
Wheelbase | 2845mm |
Track | 1825mm |
Speed | 0-38km/H |
Weight | 9520kg(with bucket) |
System Pressure | 19Mpa |
Hydraulic Output: | 184L/min |
Fuel Tank Capacity | 175L |
Fuel Consumption | 235g/kw.h |
Max. Dumping Height | 4480mm |
