BLD1600T Standard：
Ø Standard bucket

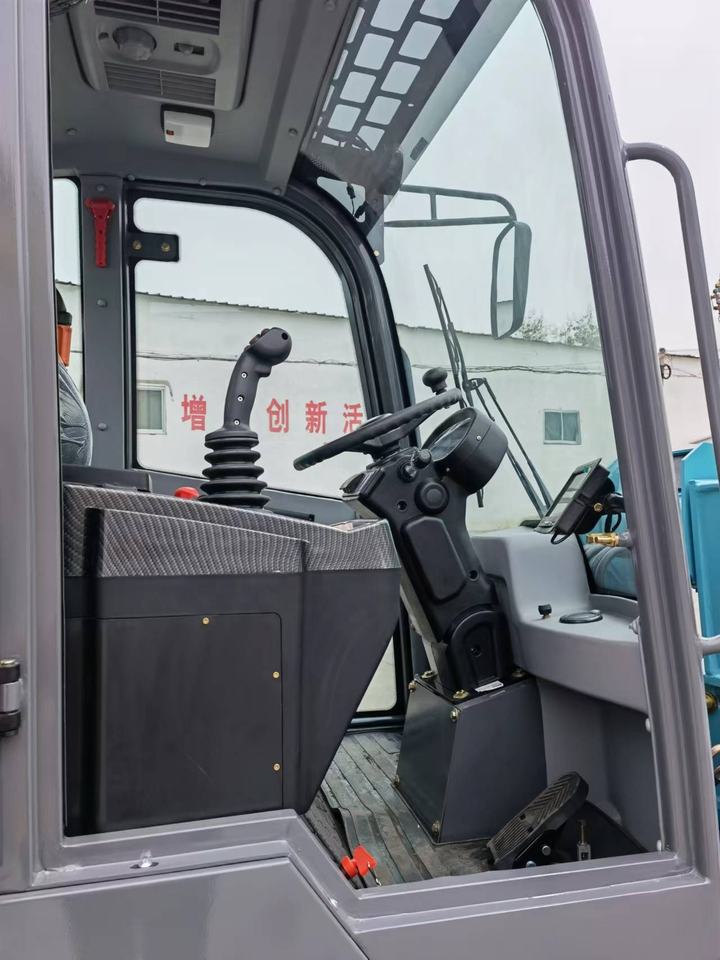

Ø Luxurious wide view cabin
Ø Cabin skylight
Ø Cabin heater
Ø Electronic joystick(button control)
Ø Xinchai498 36.8KW
Ø Hub axle
Ø 20.5/70-16 tire
Ø Digital screen dashboard
Ø Adjustable seat with safe belt
Ø 4ways valve bank
Ø Hydraulic pressure test port
Ø Varta anti-freeze battery(24V)
Ø LED light
Ø Engine preheat(Cold region)
Ø Rear trailer hook system

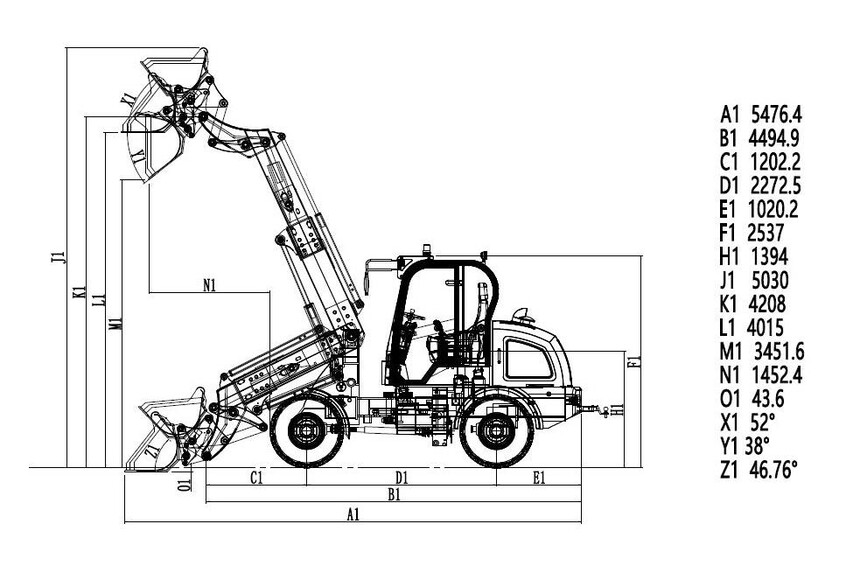

Ø LxWxH:5475×1750×2540mm
Ø Operating Weight:4100Kg
Rated Load Top Position:700Kg
Whole drive system | Hydraulic system(torque converter) |
Specification | Overall weight(kg) | 4100 |
L×W×H(mm) | 5475x1750x2540 |
Rated bucket capacity(m3) | 0.8 |
Rated load(kg) | 1600 |
Dump height (mm) | 3452 |
Dump distance(mm) | 510 |
Wheel base(mm) | 2280 |
Tread(mm) | 1500 |
Total time(s) | 8 |
Engine | Model | Xinchai A498 |
Type | Direct injection, Horizontal, Water-cooled, Four stroke |
Rated power(KW) | 36.8 |
Rated speed(r/min) | 2400 |
Working system | Gearbox type | ZL-10 |
Walking pump | ZK-240 |
Working pump (Double Pump) | CBQL-F532 |
Steering system | Max. turning angle | 45 |
Min turning radius(mm) | 3600 |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.8S |
Tank capacity | 45L |
Tires | Standard tires | 20.5-16 |
Stand bucket | Width (mm) | 1800 |
