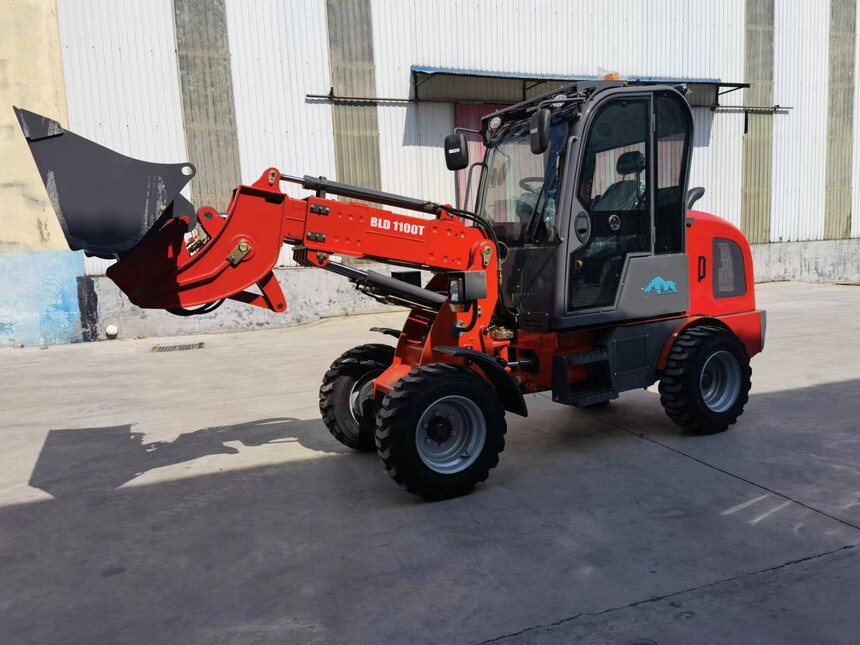

BLD1100T Standard：
Ø Standard bucket
Ø Luxurious wide view cabin
Ø Cabin heater
Ø Electronic joystick(button control)
Ø ChangchaZN390
Ø Isuzu axle
Ø 750-16 tire
Ø Digital screen dashboard
Ø Adjustable seat with safe belt
Ø 4ways valve bank
Ø Hydraulic pressure test port
Ø Varta anti-freeze battery(24V)
Ø LED light
Ø Engine preheat(Cold region)
Ø Rear trailer hook system
Ø LxWxH:4827×1520×2434mm
Ø Operating Weight:2900Kg
Rated Load Top Position:400Kg
Specifications:
Whole drive system | Hydraulic system(torque converter) |
Specification | Overall weight (kg) | 2800 (with cab) |
2550 (with roll bar) |
L×W×H(mm) | 4500×1550×2420 |
Rated bucket capacity(m3) | 0.5 |
Rated load(kg) | 1000 |
Dump height (mm) | 2025 |
Dump distance(mm) | 800 |
Wheel base(mm) | 2145 |
Thread(mm) | 1175 |
Total time(s) | 8 |
Engine | Standard Model | ChangchaZN390 （Xinchai490 Euro 3 36.8Kw） （ Changchai 390 Euro 5） |
Type | Direct injection, Horizontal, Water-cooled, 3 stroke |
Rated power(KW) | 25 |
Rated speed(r/min) | 2400 |
Steering system | Max. turning angle | 40 |
Min turning radius(mm) | 3800-4200MM |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.2S |
Tank capacity | 30L |
Stand bucket | Width (mm) | 1600 |
