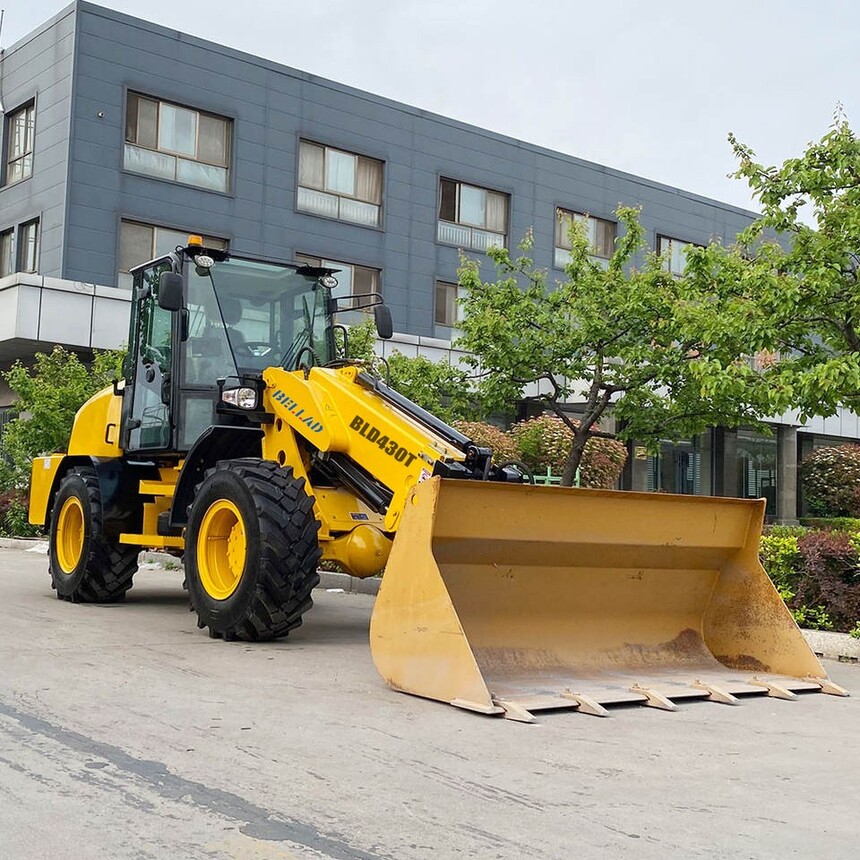

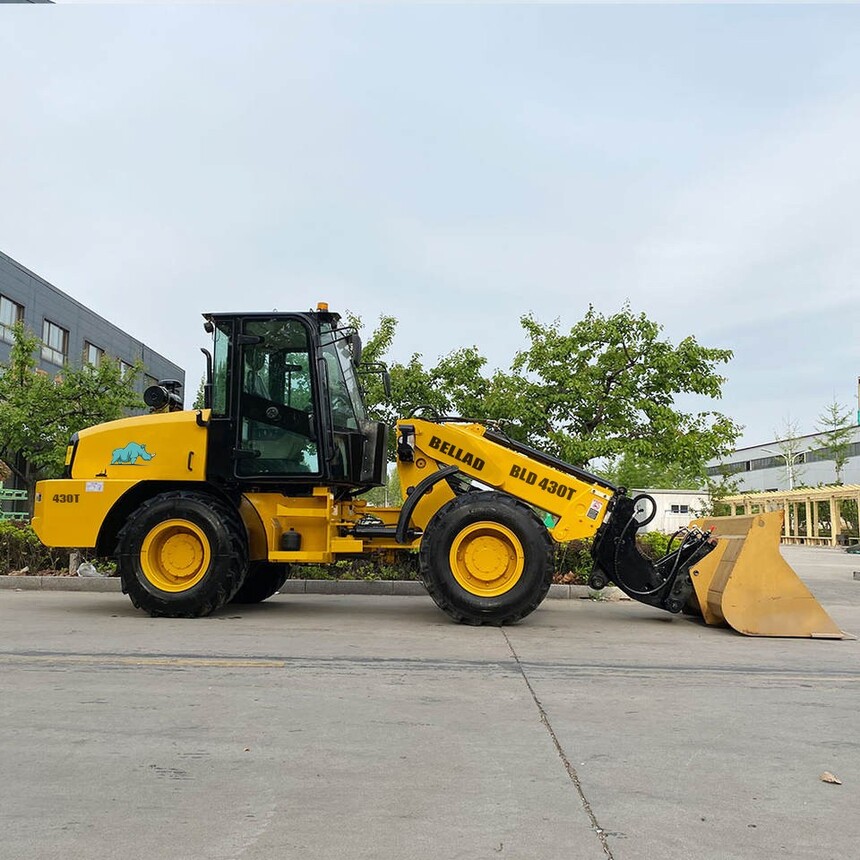

BLD430T

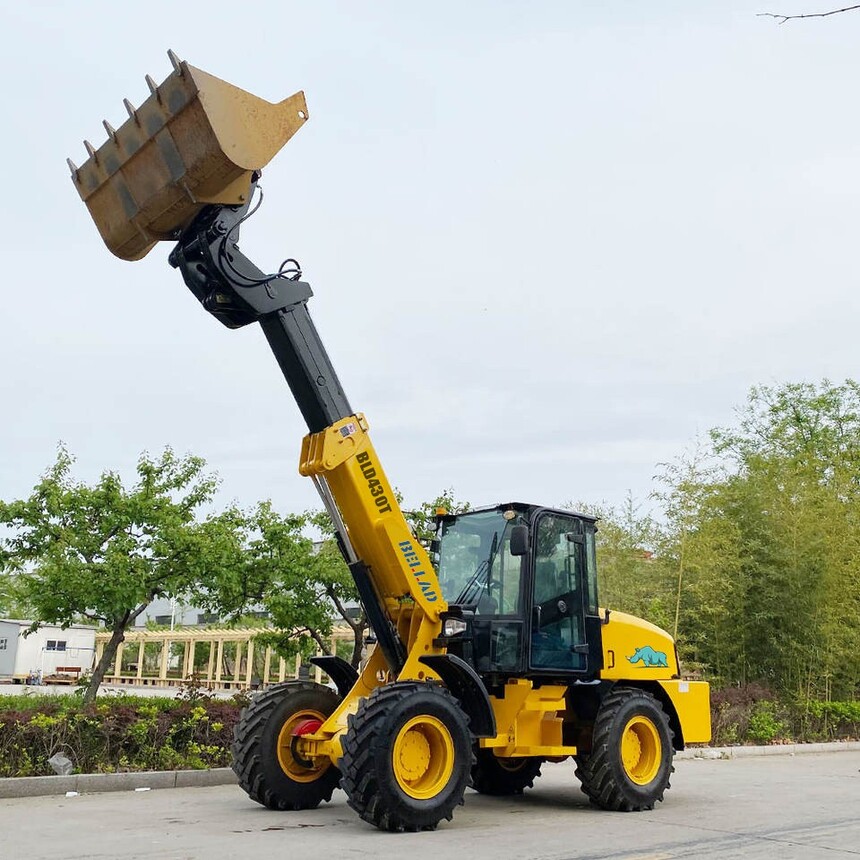

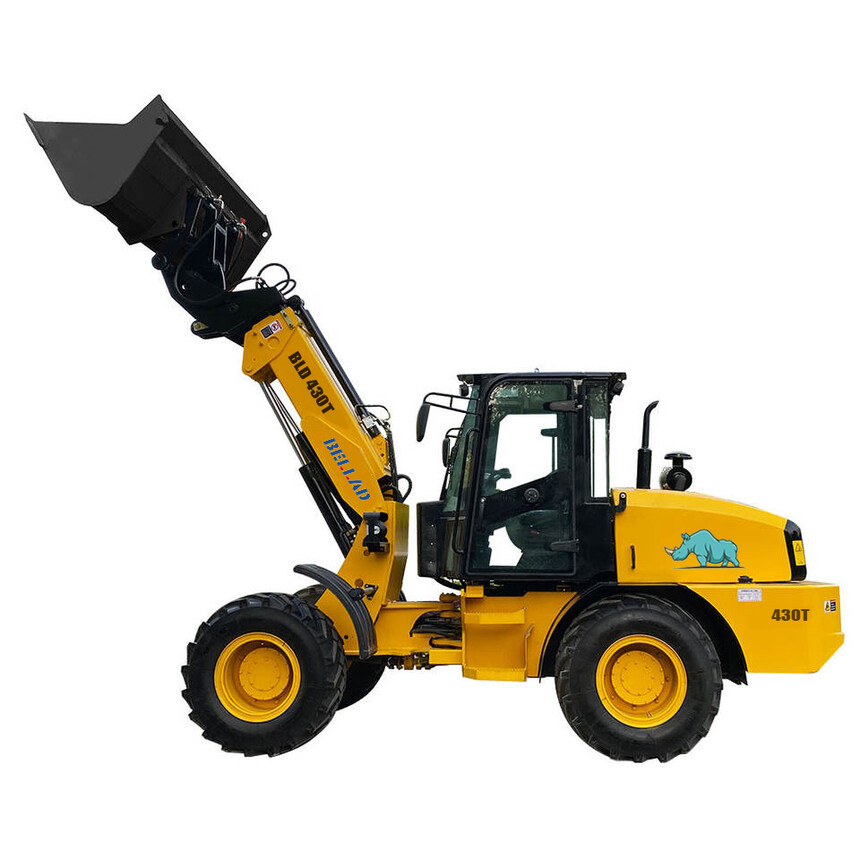

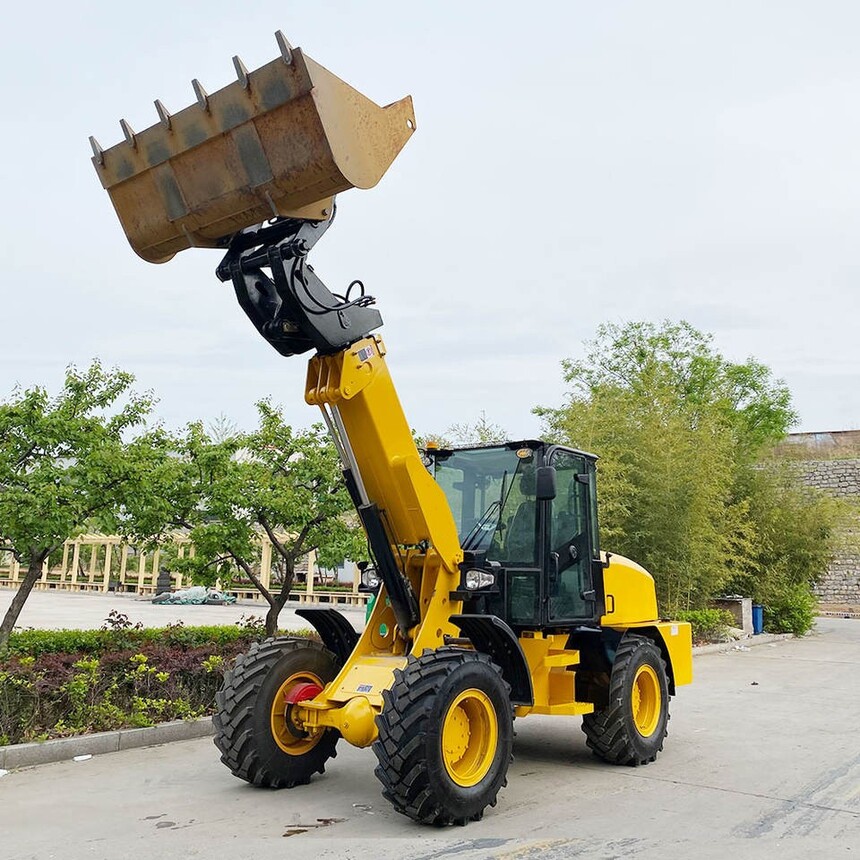

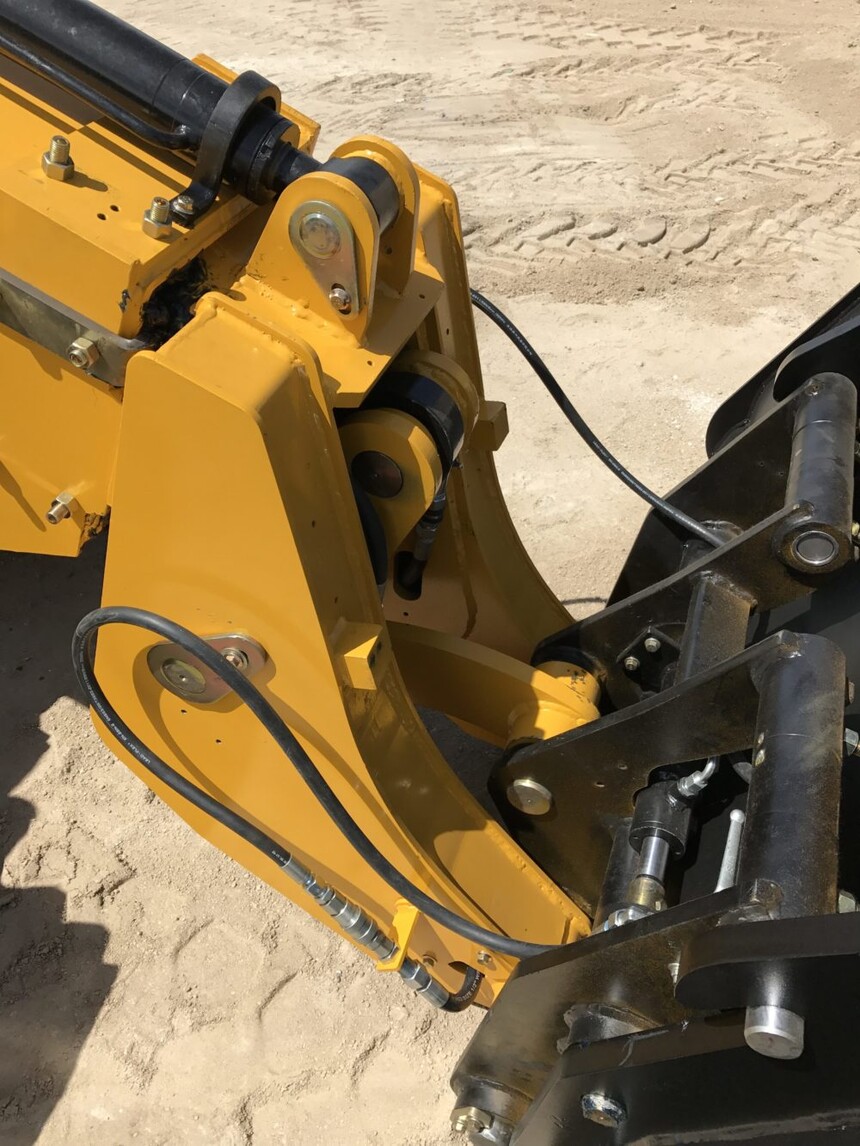

The Telescopic Boom truly makes the BLD430T Telescopic Wheel Loader one of the most versatile loaders in the market.
The Telescopic Boom reaches a maximum stacking height of 6000 mm.
Its extra reach and compact size, allows for an endless range of dumping and stacking jobs. The BLD430T Telescopic Wheel Loader is used both indoors in warehouses and outdoors, in agriculture and farm buildings.
Performance | Model | BLD430T |
| Rated loading | 2800kg(1500kg max boom) |
| Operation weight | 6500kg |
| Rated bucket capacity | 1.2m3 |
| Max. grade ability | 30° |
| Min. ground clearance | 360mm |
| Wheelbase | 2550mm |
| Steering angle | 45° |
| Max. dump height | 4100mm |
| Dump distance | 930mm |
| Overall dimension (L*W*H) | 6100x2130x2680mm |
| Min. turning radius | 4510mm |
| Track base | 1600mm |
| Dumping angle | 40° |
| Function of leveling automatic | Yes |
Engine | Brand | YunNei |
| Type | Vertical, in-line, water cooling, 4-cylinder, turbo type |
| Rated power | 76KW |
Transmission system | Torque converter | YJ280 |
| Gearbox mode | Counter shaft, Power-shift |
| Gear shift | 2 forward,2 reverse (1 high speed,1 low speed)
Hydraulic gearshift(optional electric gearshift) |
| Max. speed | 28km/h |
Drive axle | Main reducing spiral | Circular Arc Bevel gear, single stage |
| Decelerating mode | Single stage planetary type |
Hydraulic system | System working pressure | 16Mpa |
| System flow | 63L/min |
Brake system | Service brake | Hydraulic disc brake on 4 wheels |
| Parking brake | Flexible shaft operated external drum |
Tyre | Tyre model | 16/70-20 herringbone tire |
| Width | 380mm |
| Diameter | 1075mm |
Filling capacity | Diesel fuel tank | 50L |
| Hydraulic tank | 40L |
| Oil tank | 110L |
