BLD1000T

BLD1000T Standard：

Ø DH Hydrostatic system

Ø Standard bucket

Ø Quick hitch

Ø Electronic joystick(button control)

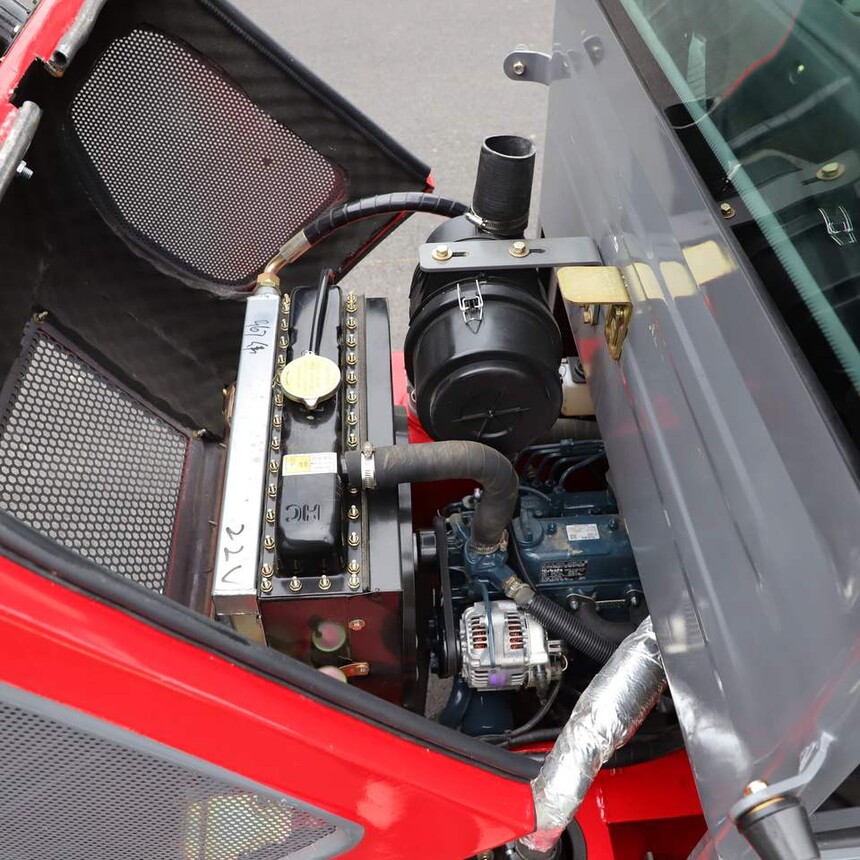

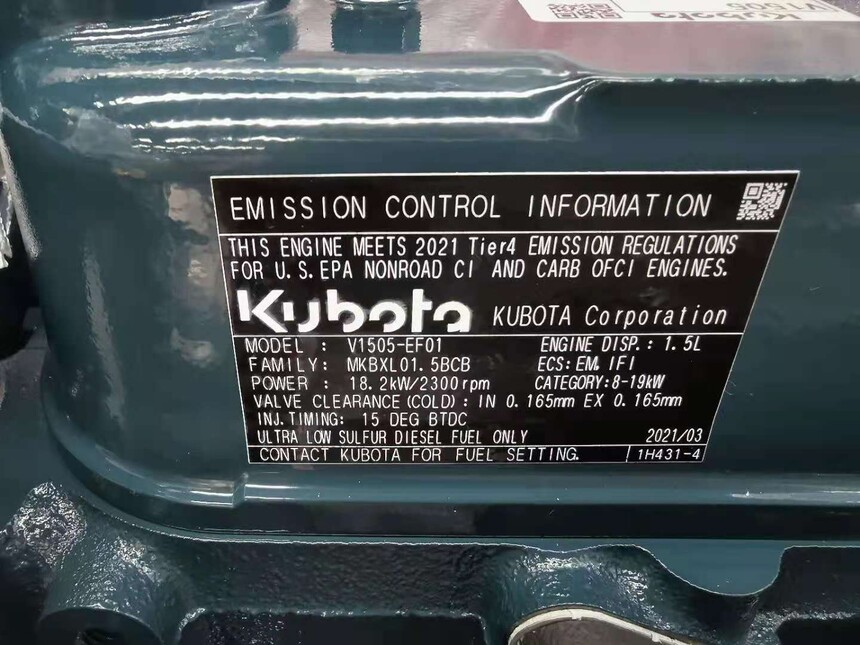

Ø Kubota V1505 engine 18.2KW

Ø DH axle system

Ø 31X15.5-15 tubeless tire

Ø Digital screen dashboard

Ø Adjustable seat with safe belt

Ø 3ways valve bank

Ø Hydraulic pressure test port

Ø Varta anti-freeze battery(12V)

Ø Closed cabin

Ø LED light

Ø Rear trailer hook system

Ø LxWxH:4039×1446×2260mm

Ø Operating Weight:2300Kg

Ø Rated Load Top Position:400Kg

Specifications:

Whole drive system	Hydrostatic drive system
Specification	Overall weight (kg)	2300 (without cab)
	L×W×H(mm)	4537X1446x2279
	Rated bucket capacity(m3)	0.4-0.6 m3
	Rated load(kg)	900
	Dump height (mm)	2758
	Dump distance(mm)	1378
	Wheel base(mm)	1595
	Tread(mm)	1106
	Total time(s)	8
Engine	Model	Kubota V1505
	Rated power(KW)	25HP/18.4KW
	Rated speed(r/min)	2400
Steering system	Max. turning angle	42
Steering system	Turning radius(mm)	2805MM
Hydraulic system	Working pressure	16Mpa
Hydraulic system	Boom lifting time	4.2S
Tires	Standard tires	31x15.5-15
Stand bucket	Width (mm)	1650

BLD1000T applies Italy Hydrostatic-drive system; Compared with traditional torque converter transmission, it has advantages in many ways.

transmitting high power in a compact package
exhibiting low inertia
operating efficiently over a wide range of torque-to-speed ratios
maintaining controlled speed regardless of load, within design limits
accurately maintaining preset speed against driving or running loads

It is very compact in design and small in size. The overral dimensions is 4537 x 1446 x 2279mm, and operation weight is 2300kg. The standard configuration include 31x15.5-15 tires, electronic joystick,standard bucket and quick hitch.
