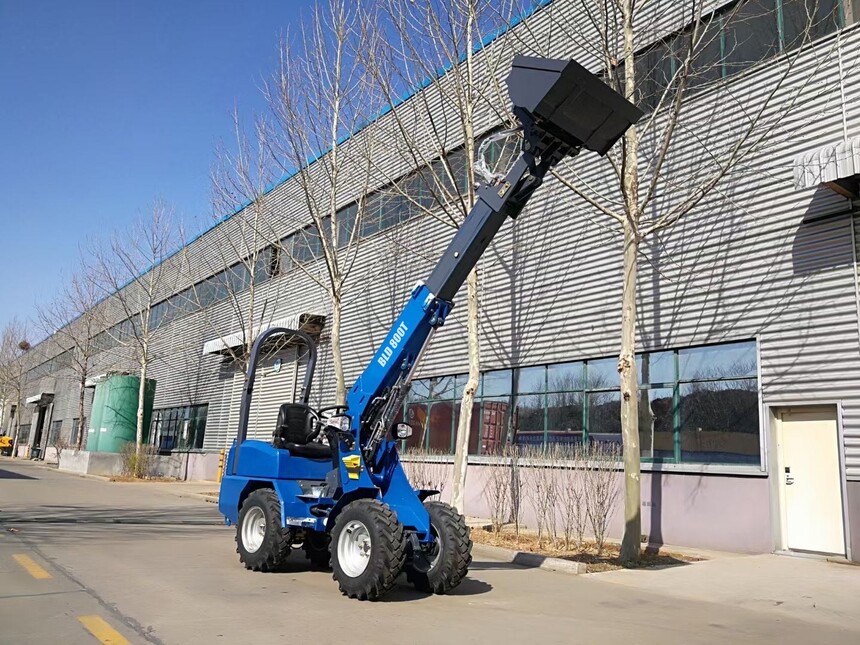

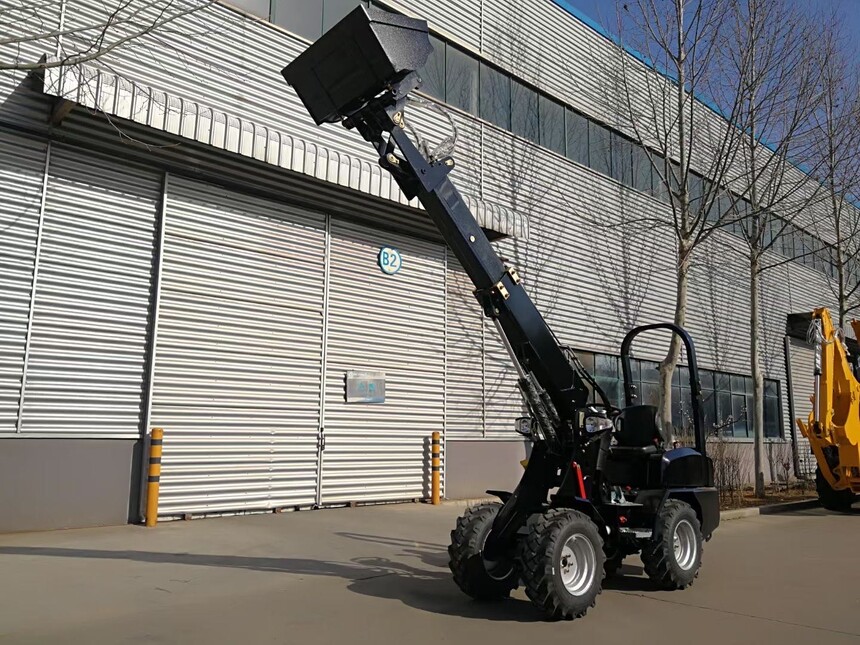

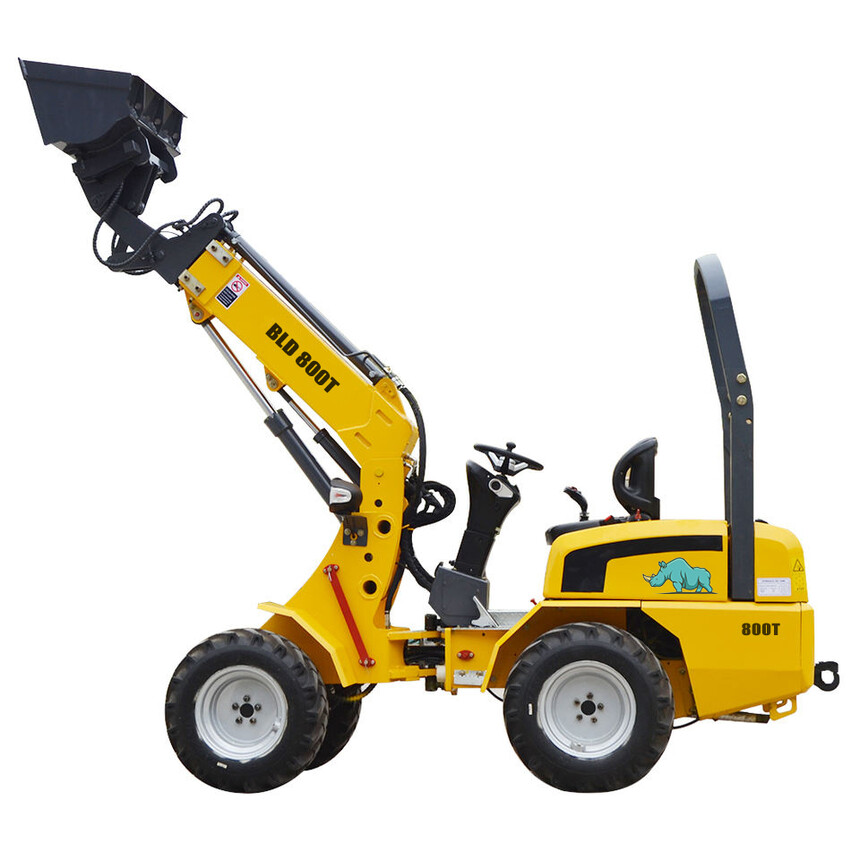

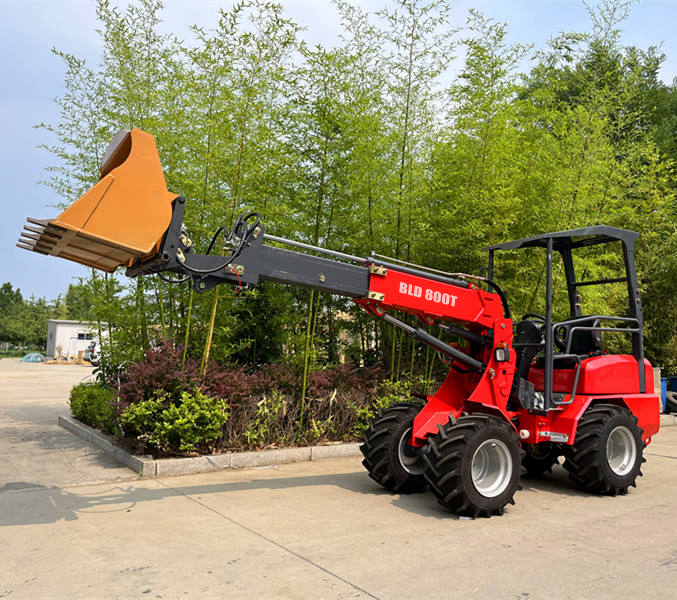

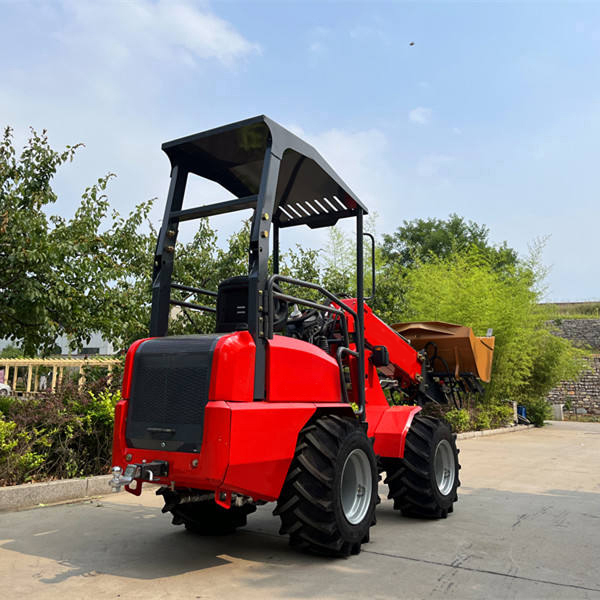

BLD800T

Rated loading(Main boom)

800kg

Rated loading(Secondary boom)

600kg

Operation weight

2100kg

Loader type

Double arm

Geometry

Parallel

Tire size

10.0/75-15.3

Overall dimension (L*W*H)

3820x1250x2310mm

Shovel mounting

Mechanical quick hitch

Shovel type

General purpose

Capacity heaped

0.3m3

Shovel breakout force

20.5kN

Turn radius over shovel

2690mm

Lifting Height of main boom

2959mm

Dumping Height of main boom( dumping angle 45°)

2051mm

Dumping reach of main boom

587mm

Max. Loading capacity of main boom

1000kg

Lifting height of small boom

3526mm

Dumping height of small boom (dumping angle 45°)

2618mm

Dumping reach of small boom

1085mm

Max. Loading capacity of small boom

600kg

Engine

Make

Xinchai

Model

3B11X51

Capacity

1.642 liters

Cylinders

3

Engine output

16.2kw @2200rpm

Gross torque rating

99~107.8Nm

Aspiration

Natural

Transmission

Type

Hydrostatic

System pump type

Variable displacement piston

Drive type

Independent wheel motors

Chassis angle oscillation

7.5 degrees each way

Travel speed

20km/h

Loader hydraulics

Pump type

Gear

Pump maximum flow

42L/min

Pump maximum pressure

200bar

Hydraulic cycle times at engine revs

Seconds

Arms raise (full bucket)

3

Bucket dump (full bucket)

0.5

Arms lower (empty bucket)

3

Total cycle

7

Service fill capacities

Hydraulic and transmission system

40 liters

Fuel tank

45 liters

Engine oil sump

7.1 liters

Electrical output

System voltage

12 volts

Alternator output

65 Ah

Battery capacity

60 Ah

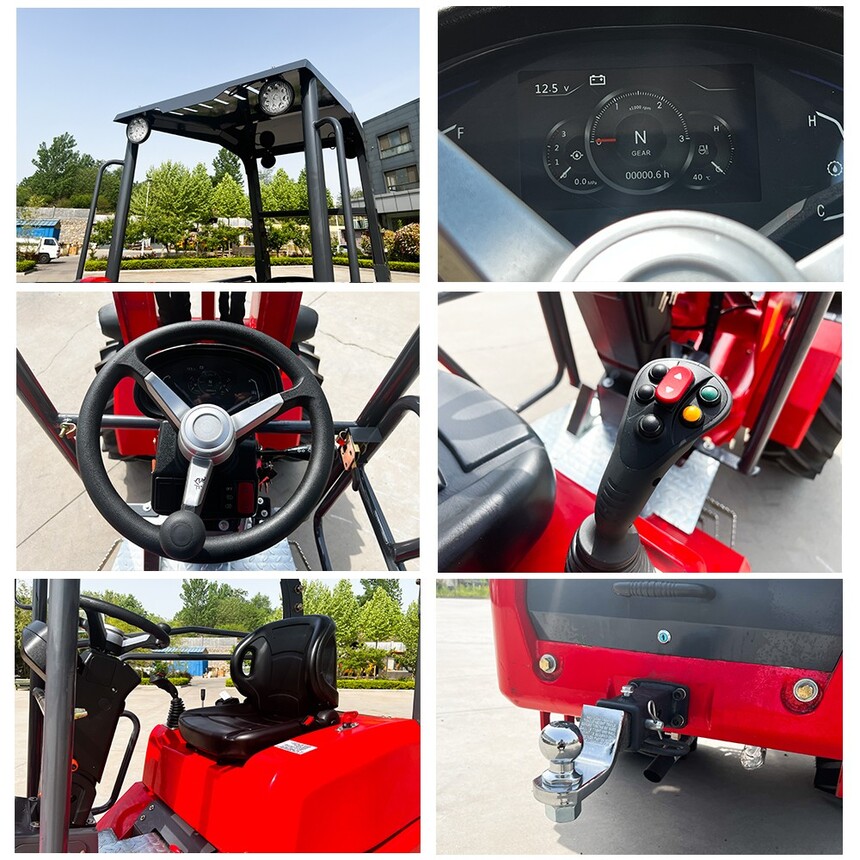

Standard equipment

ROPS frame

Lockable down joystick
