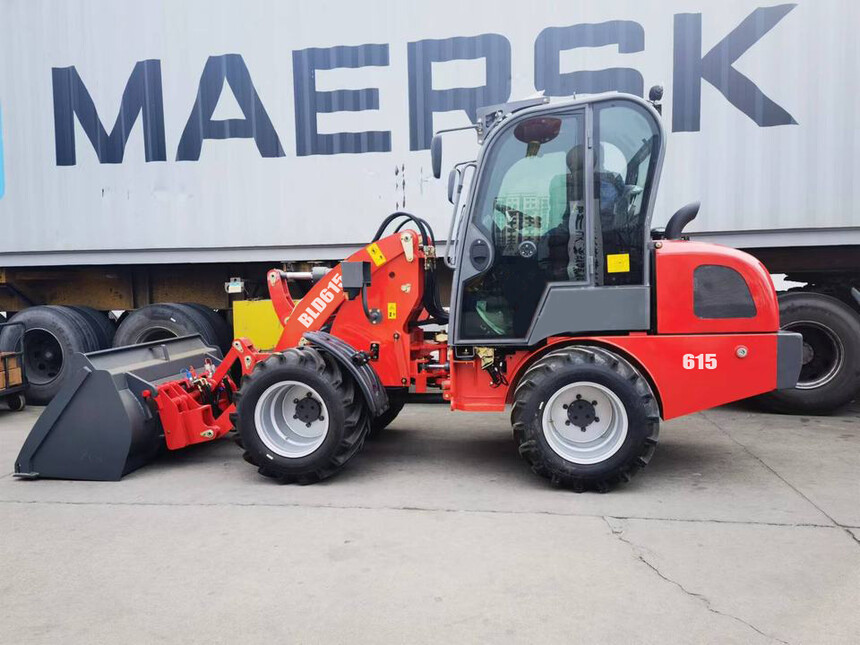

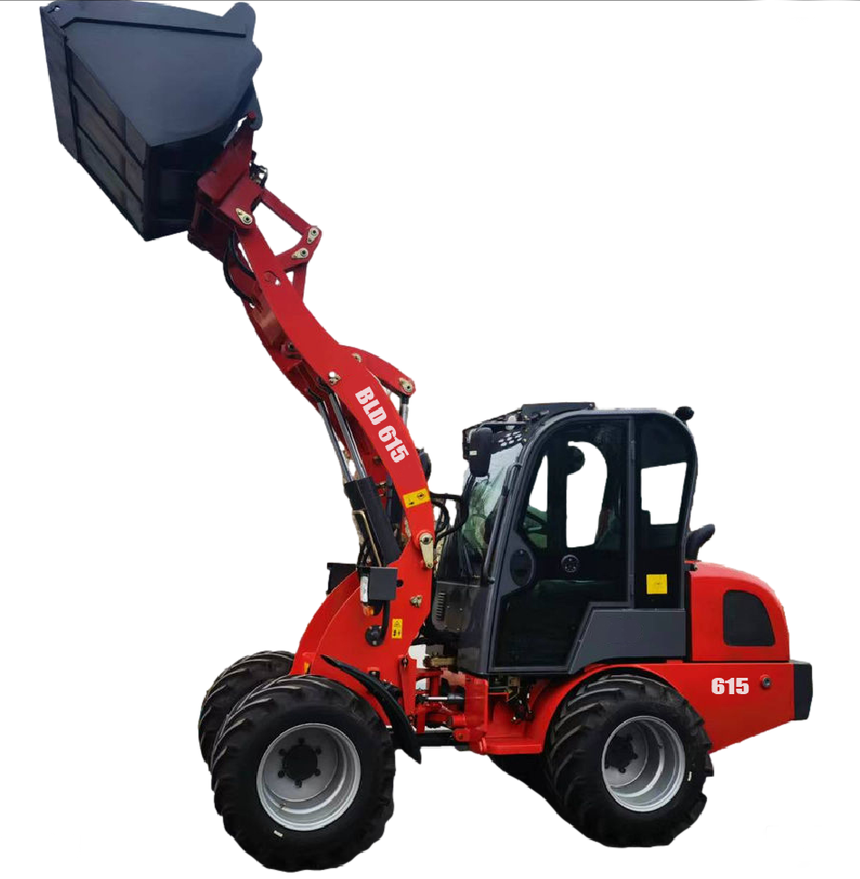

BLD615 Hydrostatic-drive wheel loader
Specification | Overall weight(kg) | 3400 |
L×W×H（mm） | 4860 x 1610 x2300 |
rated bucket capacity(m3) | 0.6 |
Rated load(kg) | 1500 |
Max. dump height (mm) | 2373 |
Bucket indicator | Yes |
Wheel base (mm) | 1800 |
Thread (mm) | 1140 |
Max. breakout force(KN) | 43 |
Engine | Model | Yanmar 4TNV86CT-PSY/Kubota V2403 |
Type | In-line arrangement, Water cooling, four-stroke |
Rated power（kw） | 35.5 |
Rated speed(r/min) | 2400 |
Hydrostatic system | Model | Italy PWG |
Motor type | MV80 |
Gear shift | 2 gears ahead,2 gear astern |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 38±2° |
Min. turning radius(mm) | 3172 |
Brake system | Brake type | Oil brake(Vacuum booster) |

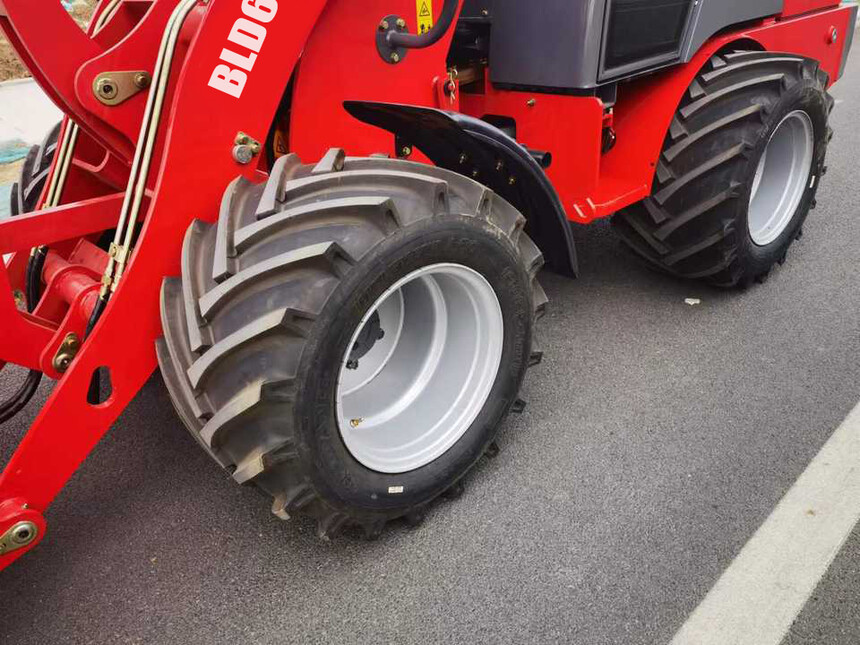

Tires | Standard tires | 19.0/45-17 |
Standard bucket | Width (mm) | 1650 |
