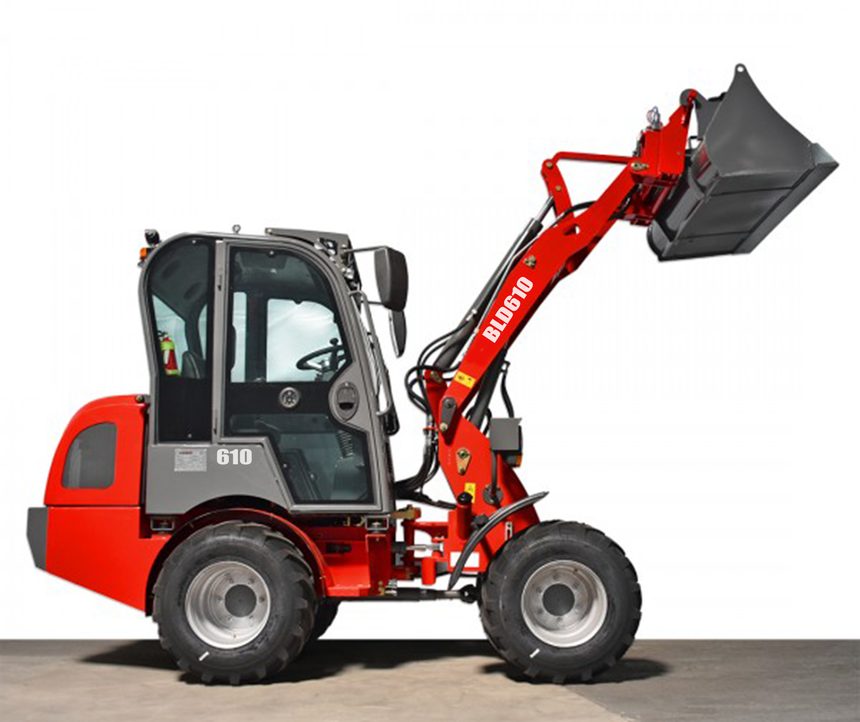

BLD610

BLD610 with 1000kg loading capacity, It is equipped with imported Italy hydrostatic system and Kubota Euro5 engine

Standard：

Ø DH Hydrostatic system

Ø Standard bucket

Ø Quick hitch

Ø Electronic joystick(button control)

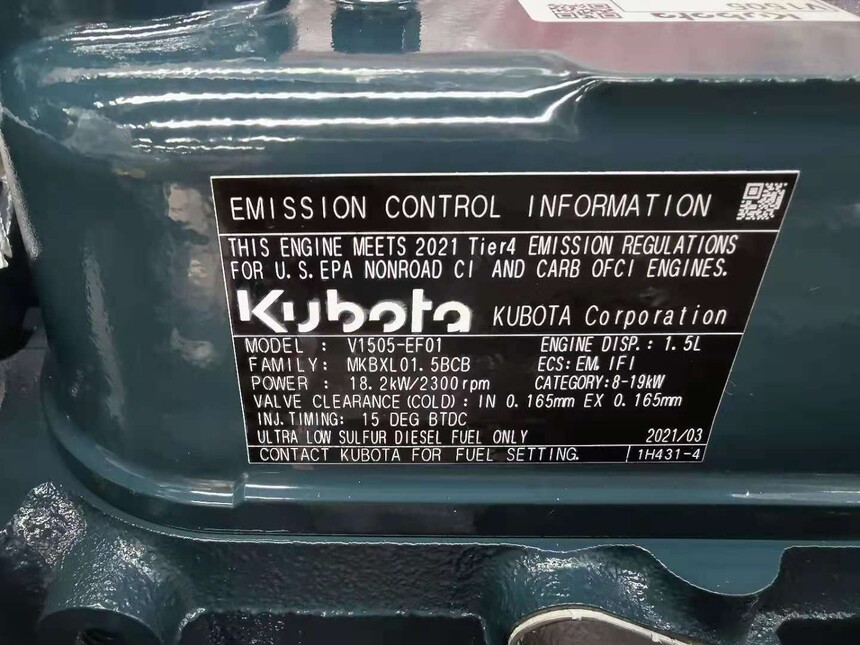

Ø Kubota V1505 E 5 (EPA4)engine

Ø DH axle system

Ø 31X15.5-15 tubeless tire

Ø Digital screen dashboard

Ø Adjustable seat with safe belt

Ø 4ways valve bank

Ø Hydraulic pressure test port

Ø Varta anti-freeze battery(12V)

Ø Open cabin

Ø LED light

Ø Rear trailer hook system

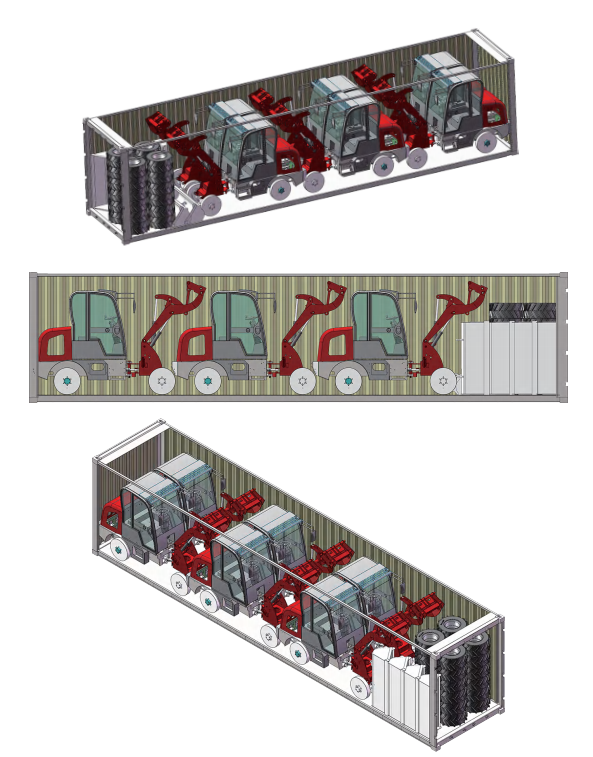

Shipment:

2 sets/20GP;6 sets /40HQ

Whole drive system	Hydrostatic system
Specification	Overall weight (kg)	2300 (with cab)
	Overall weight (kg)	2200 (with roll bar)
	L×W×H(mm)	4036 X 1450 X 2260
	Rated bucket capacity(m3)	0.4-0.6
	Rated load(kg)	1000
	Dump height (mm)	1980
	Dump distance(mm)	800
	Wheel base(mm)	1595
	Thread(mm)	1101
	Total time(s)	8
Engine	Model	Kubota V1505 /Perkins Euro V/ EPA 4 Engine
	Rated power(KW)	18.2
	Rated speed(r/min)	2400
Steering system	Max. turning angle	40
Steering system	Min turning radius(mm)	3800-4200MM
Hydraulic system	Working pressure	16Mpa
Hydraulic system	Boom lifting time	4.2S
Tires	Standard tires	31x15.5-15
Stand bucket	Width (mm)	1600
