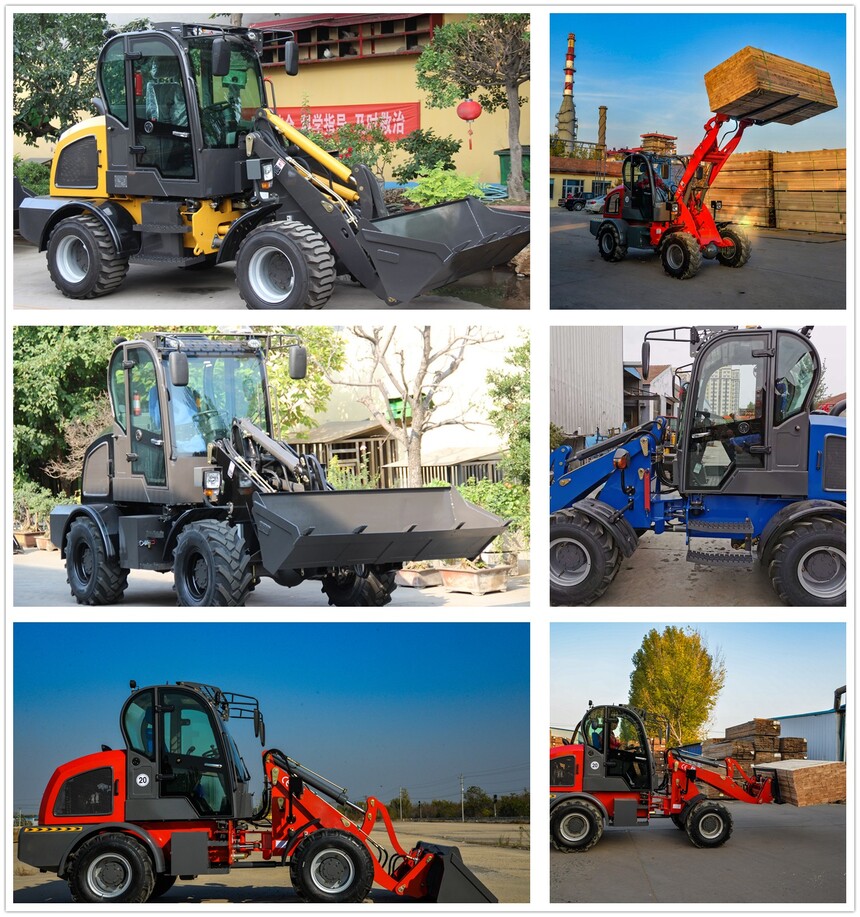

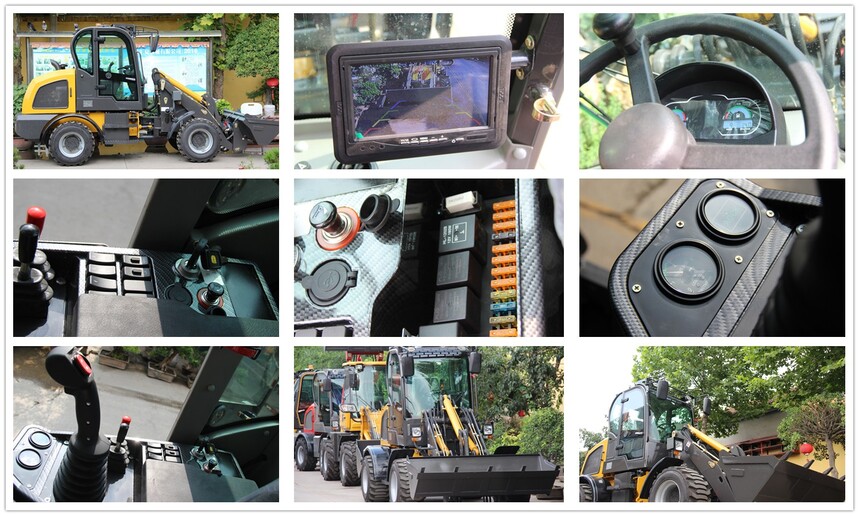

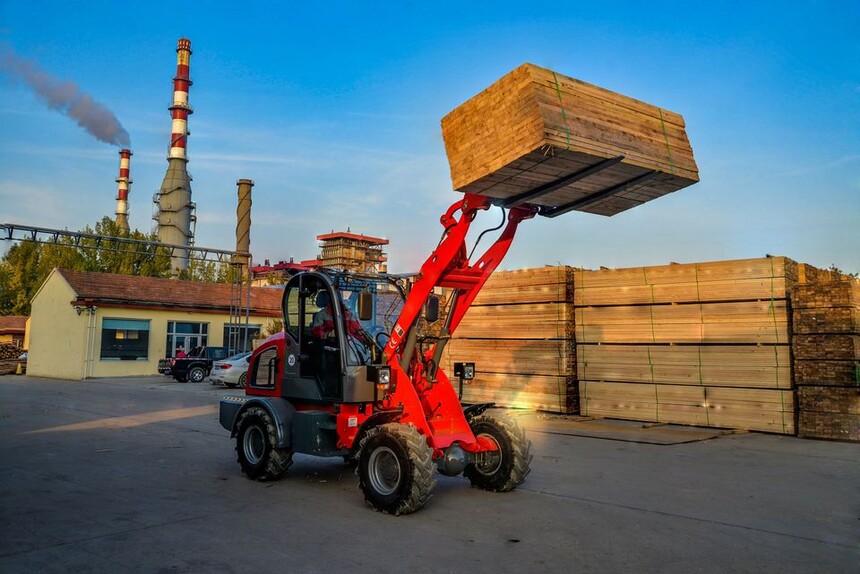

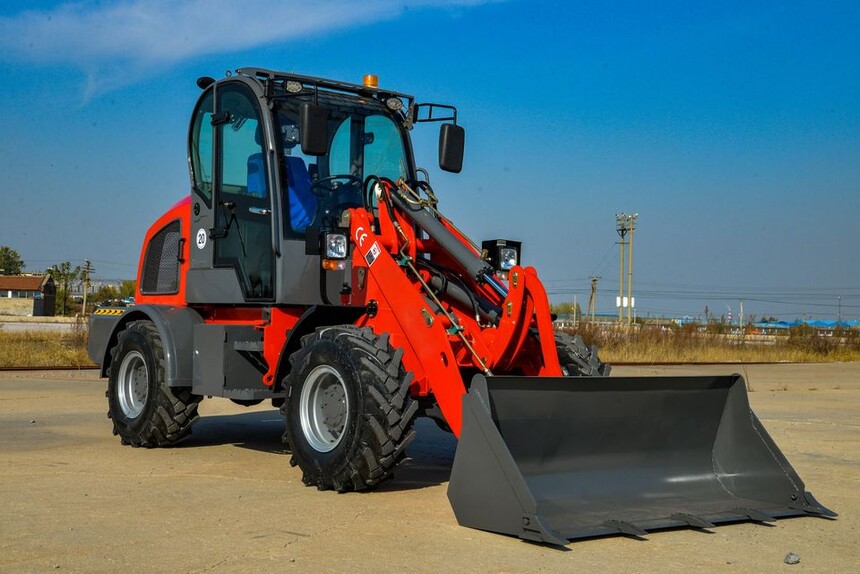

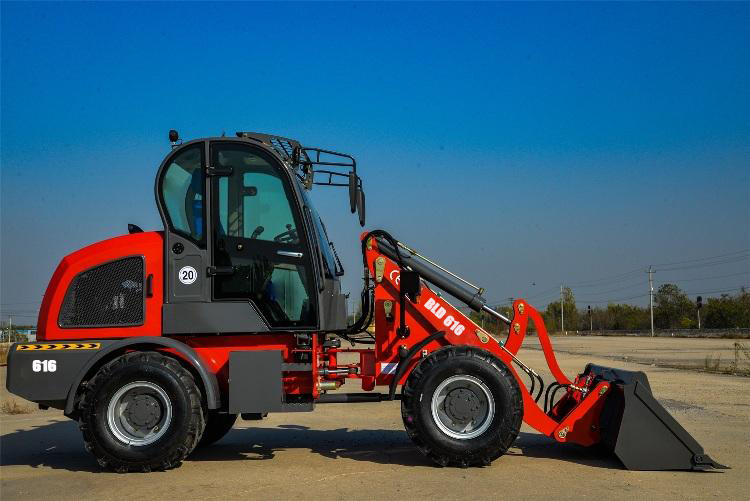

BLD616 Standard：
Ø Standard bucket
Ø Luxurious wide view cabin
Ø Cabin skylight
Ø Cabin heater
Ø Electronic joystick(button control)
Ø Xinchai 498 engine(E3)
Ø 20.5/70-16 tire
Ø Digital screen dashboard
Ø 4ways valve bank
Ø Hydraulic pressure test port
Ø Varta anti-freeze battery(24V)
Ø LED light
Ø Engine preheat(Cold region)
Ø Rear trailer hook system
Specification:
Whole drive system | Hydraulic system(torque converter) |
Specification | Overall weight(kg) | 3900 |
L×W×H(mm) | 4950×1750×2565 |
Rated bucket capacity(m3) | 0.8-0.9 |
Rated load(kg) | 1600 |
Dump height (mm) | 2180 |
Dump distance(mm) | 510 |
Wheel base(mm) | 2273 |
Thread(mm) | 1419 |
Total time(s) | 8 |

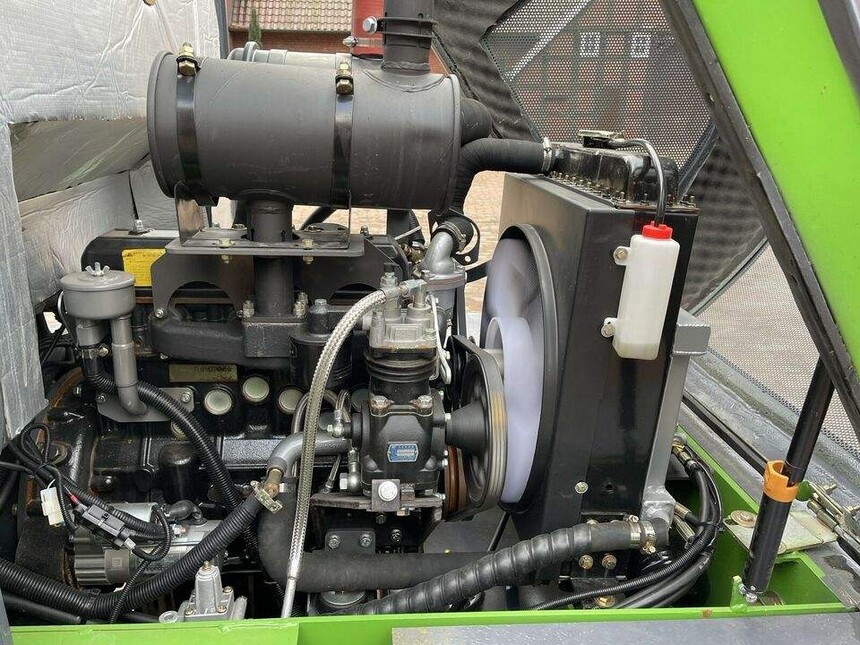

Engine | Model | Xinchai A498BT1 E3 |
Type | Direct injection, Horizontal, Water-cooled, Four stroke |
Rated power(KW) | 36.8 |
Rated speed(r/min) | 2400 |
Working system | Gearbox type | ZL-10 |
Walking pump | ZK-240 |
Working pump (Double Pump) | CBQL-F532 |
Steering system | Max. turning angle | 45 |
Min turning radius(mm) | 3600 |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.8S |
Tank capacity | 45L |
Tires | Standard tires | 20.5-16 |
Stand bucket | Width (mm) | 1800 |
