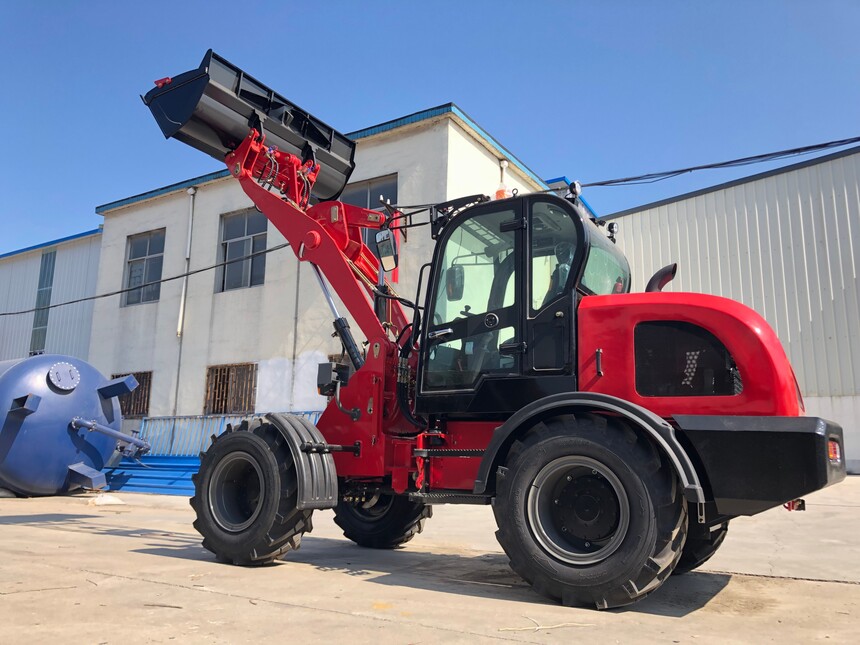

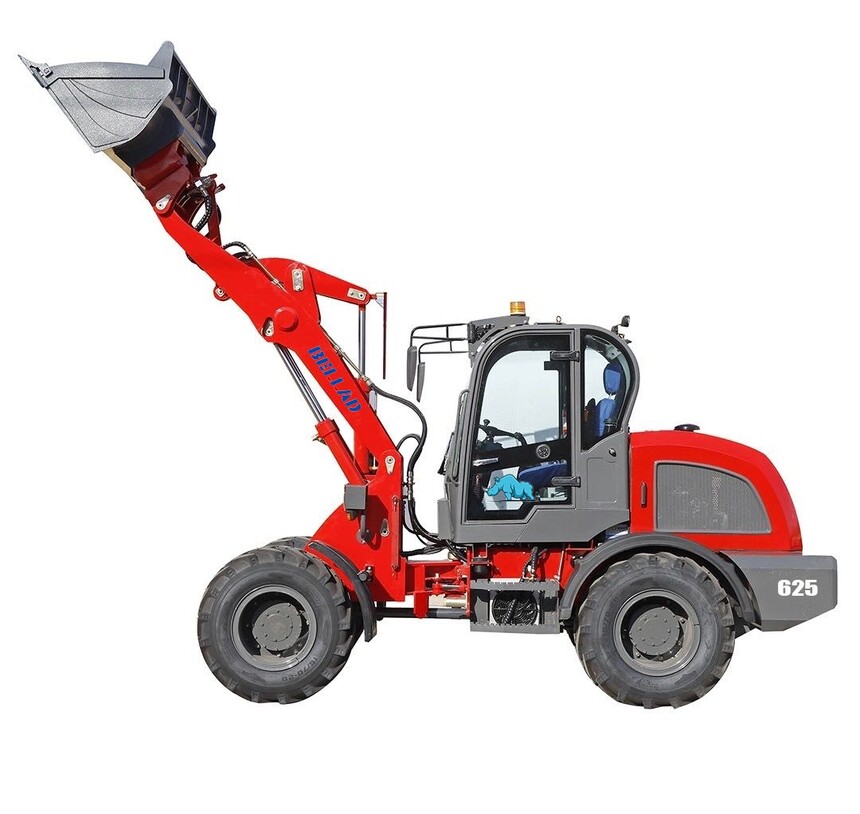

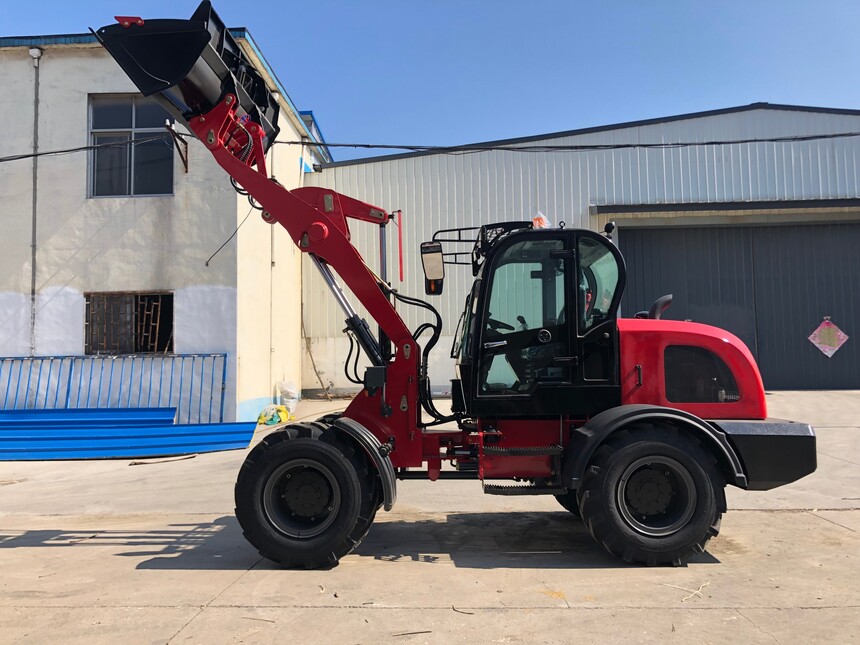

BLD625 Standard：
Ø Standard bucket
Ø Luxurious wide view cabin
Ø Cabin skylight
Ø Cabin heater
Ø Electronic joystick(button control)
Ø Changchai4G33 engine
Ø 16/70-20 tire
Ø Digital screen dashboard
Ø Adjustable seat with safe belt
Ø 3ways valve bank
Ø Hydraulic pressure test port
Ø Varta anti-freeze battery(24V)
Ø LED light
Ø Engine preheat(Cold region)
Ø Rear trailer hook system
Whole drive system | Hydraulic system(torque converter) |
Specification | Overall weight(kg) | 5500 |
L×W×H(mm) | 6000×2100×2580 |
Rated bucket capacity(m3) | 0.8-0.9 |
Rated load(kg) | 2500 |
Dump height (mm) | 2850 |
Dump distance(mm) | 510 |
Wheel base(mm) | 1550 |
Thread(mm) | 2550 |
Total time(s) | 8 |
Engine | Model | Changchai4G33 engine （Kohler KDI2504 EPA4 engine CUMMINS engine, Xinchai Euro 5 engine） |
Type | Direct injection, Horizontal, Water-cooled, Four stroke |
Rated power(KW) | 70 |
Rated speed(r/min) | 2400 |
Working system | Gearbox type | ZL-15 |
Walking pump | ZK-18 |
Working pump (Double Pump) | CBQL-F2063 |
Steering system | Max. turning angle | 45 |
Min turning radius(mm) | 4300 |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.8S |
Tank capacity | 70L |
Tires | Standard tires | 16/70-20 |
Stand bucket | Width (mm) | 2100 |
