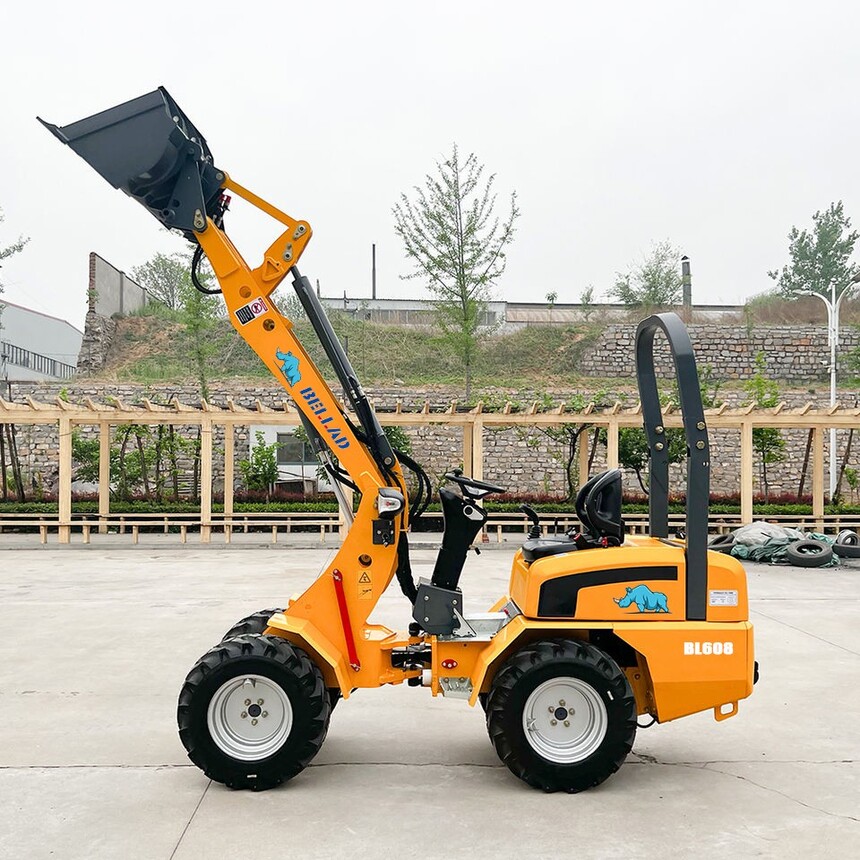

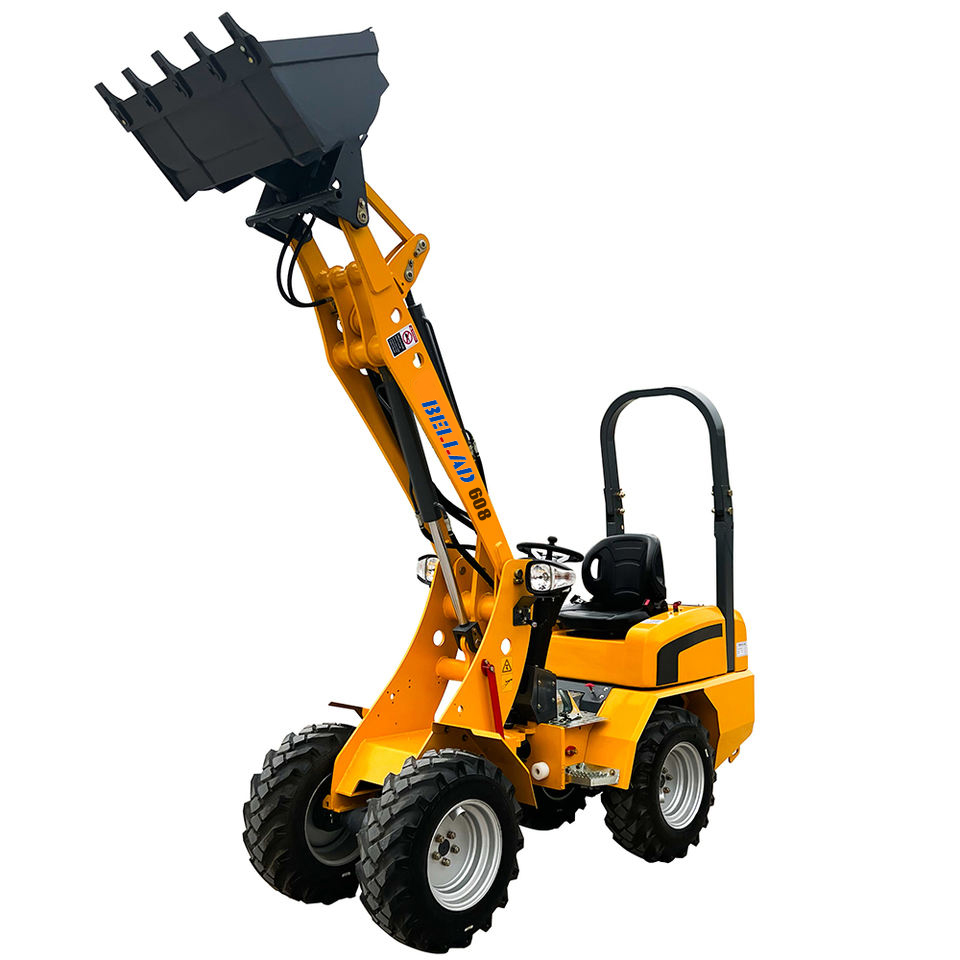

BLD608

Rated loading

800kg

Operation weight

2000kg

Loader type

Double arm

Geometry

Parallel

Tire size

10.0/75-15.3

Overall dimension (L*W*H)

4300x1160x2150mm

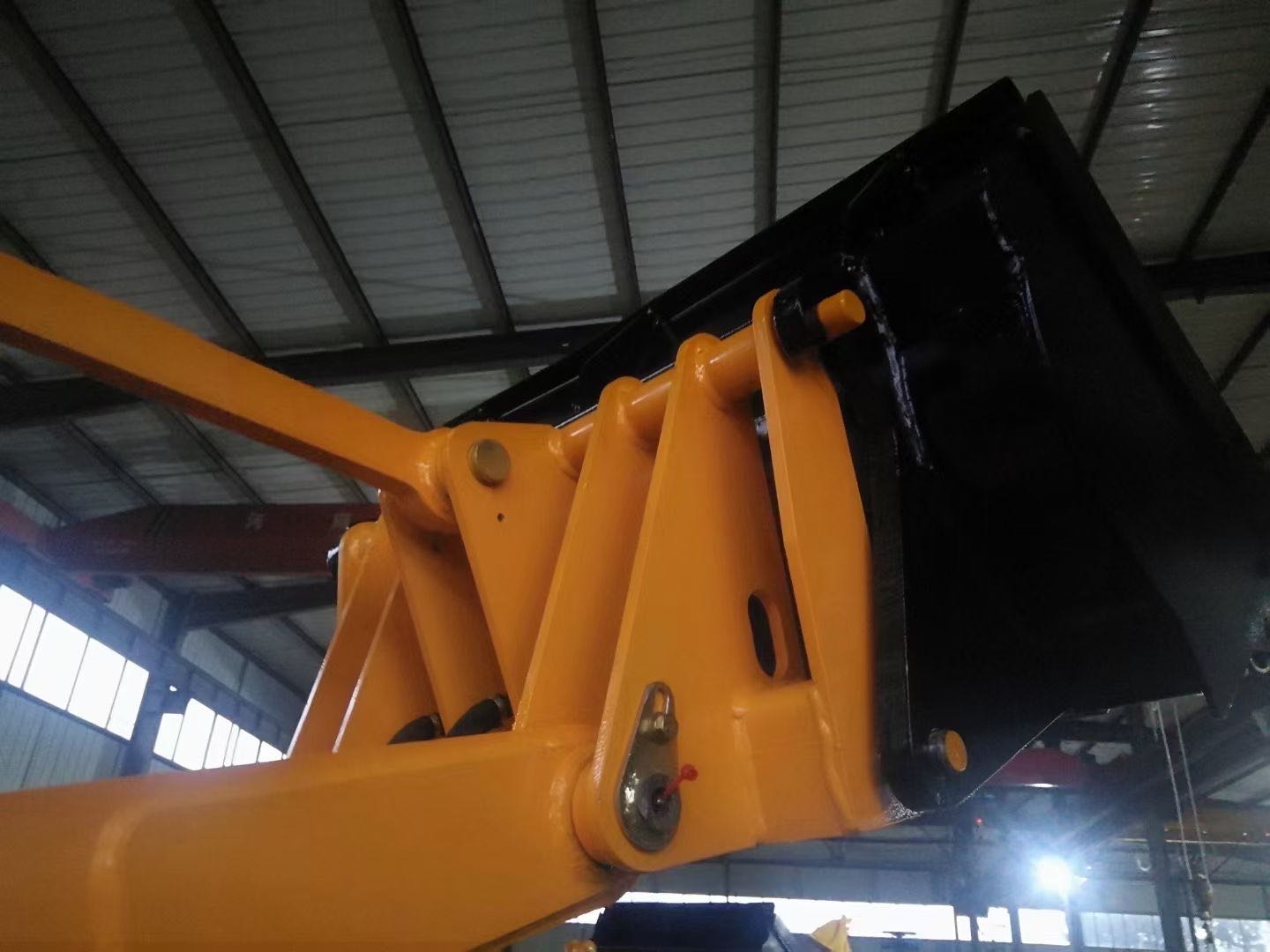

Shovel mounting

Mechanical quick hitch

Shovel type

General purpose

Capacity heaped

0.3m3

Shovel breakout force

20.5kN

Turn radius over shovel

2690mm

Tipping load straight

1261kg

Full turn tipping load

838kg

Hinge pin height

2900mm

Reach at Max. height at 45o dump

385mm

Max reach at 45o dump

1132mm

Roll back at full height

54 degrees

Dump angle at full height

45 degrees

Roll back at carry

51 degrees

Dump at Min. height

80 degrees

Total length (shovel flat on the ground)

4030mm

Length to loader pin

3259mm

Digging depth

94mm

Dump height

2167mm

Load over height

2634mm

Engine

Make

Yanmar

Model

3TVN88-DLDW

Capacity

1.649 liters

Bore

88mm

Stroke

90.4mm

Aspiration

Natural

Cylinders

3

Engine output

28kw(37.5hp) @2800rpm

Gross torque rating

104Nm

Transmission

Type

Hydrostatic

System pump type

Variable displacement piston

Drive type

Independent wheel motors

Chassis angle oscillation

7.5 degrees each way

Travel speed

20km/h

Loader hydraulics

Pump type

Gear

Pump maximum flow

42L/min

Pump maximum pressure

200bar

Hydraulic cycle times at engine revs

Seconds

Arms raise (full bucket)

3

Bucket dump (full bucket)

0.5

Arms lower (empty bucket)

3

Total cycle

7

Service fill capacities

Hydraulic and transmission system

40 liters

Fuel tank

45 liters

Engine oil sump

7.1 liters

Electrical output

System voltage

12 volts

Alternator output

65 Ah

Battery capacity

60 Ah

Standard equipment

ROPS frame

Lockable down joystick
