Details

BLD40-28

BLD40-28

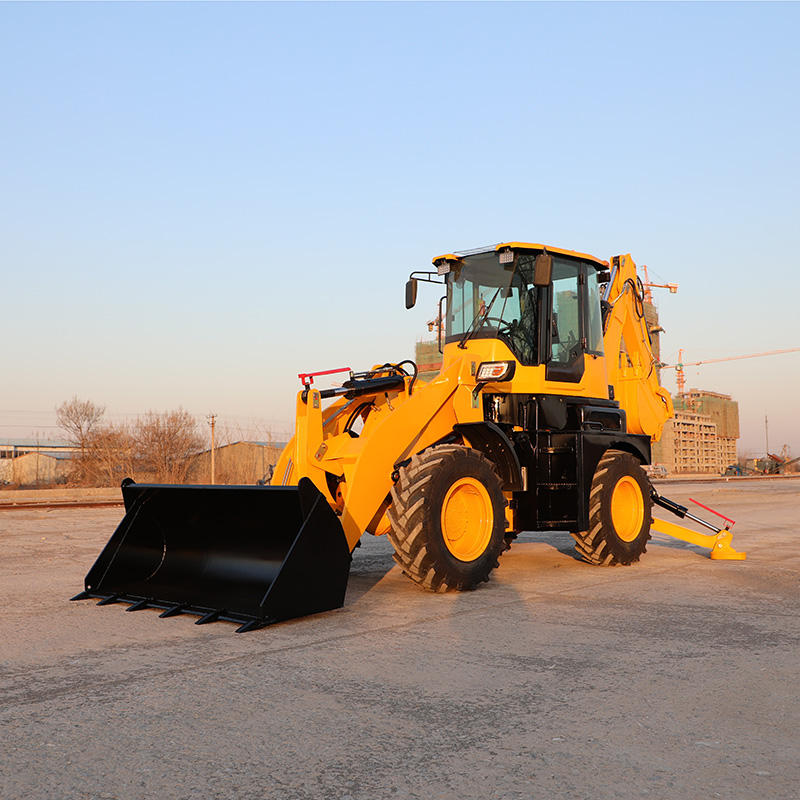

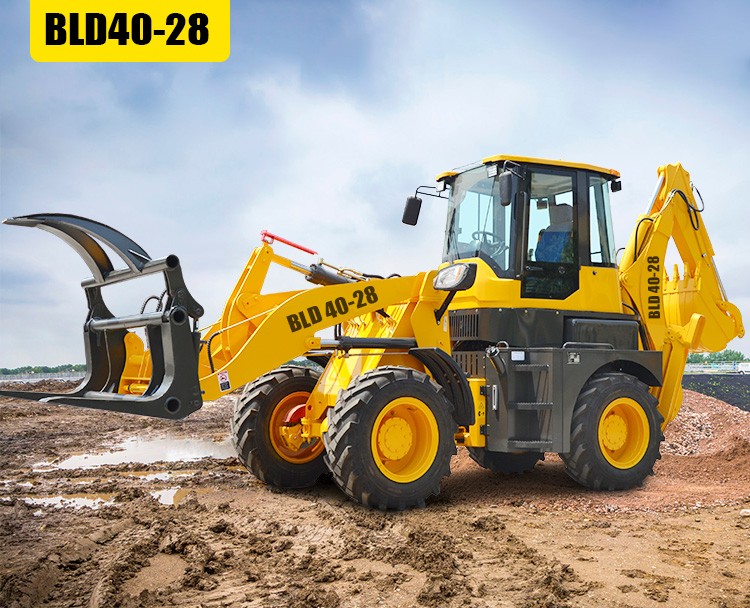

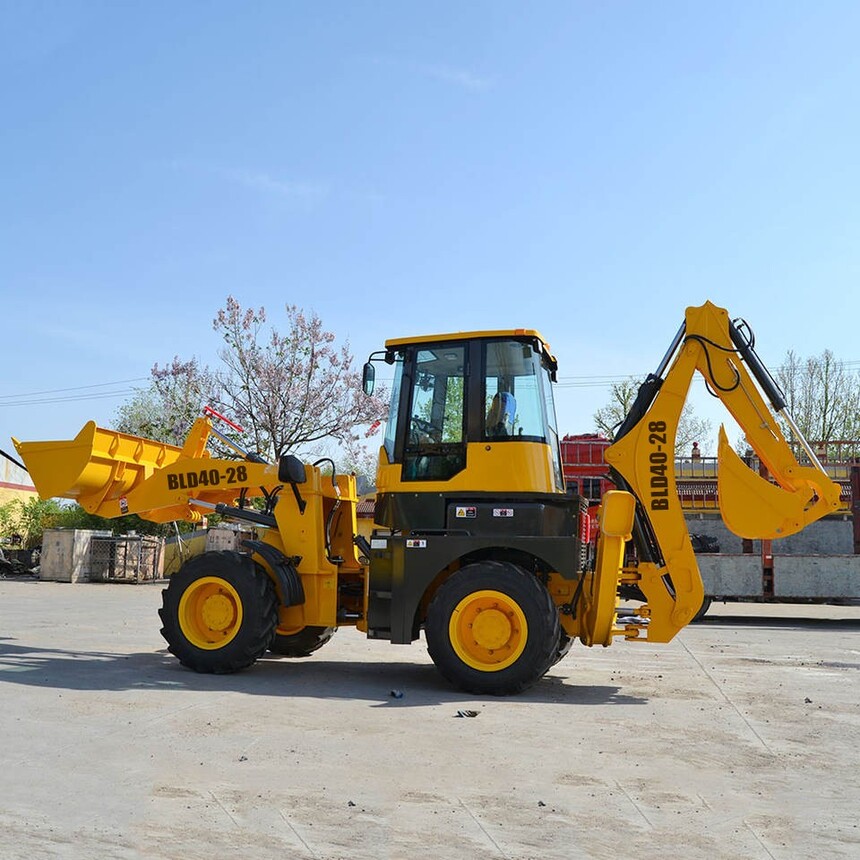

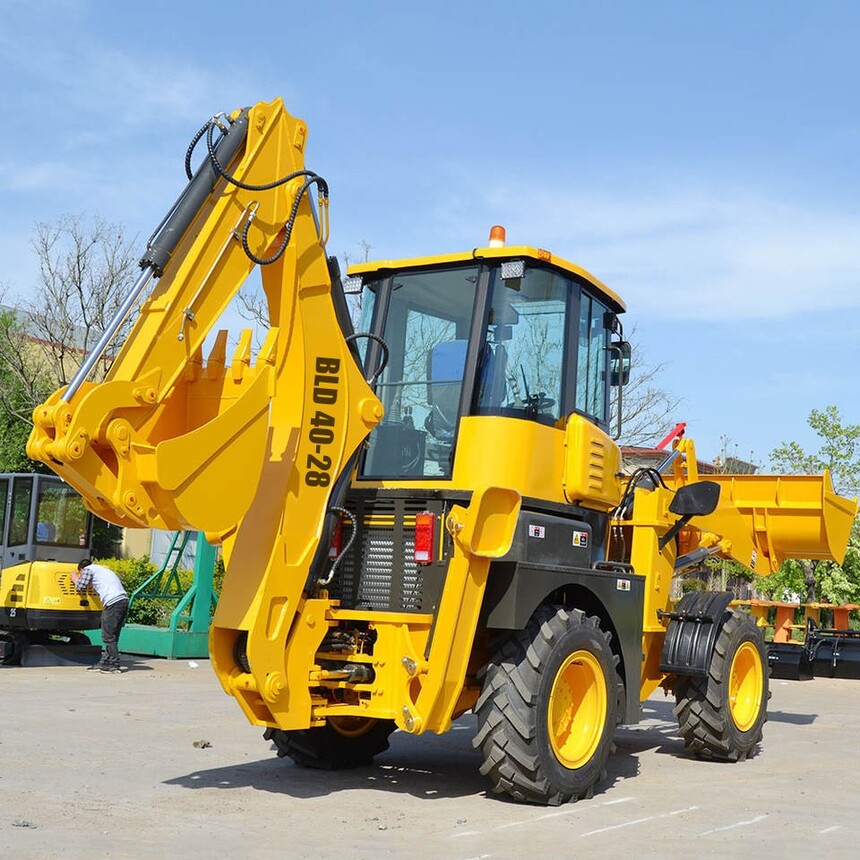

The Technical Parameter of BLD40-28 Backhoe Loader

Overall Operating Weight

6800KG


Transport Dimension

 L*W*H mm

7800×2200×3200

Min. Ground Clearance

350mm

Bucket Capacity

1.5m3

Breakout Force

38KN

Loading Lifting Capacity

2800KG

Bucket Dumping Height

3600mm

Bucket Dumping Distance

1062mm

Backhoe CapacityWidth

0.3m3(620mm)

Max. Digging Depth

4100mm

Optional Digging Depth

5300mmWith telescopic excavation arm

Swing Angle of backhoe

190o

Max. Pulling Force

39KN

Wheel base

2480mm

Wheel tread

1660mm

Engine

Brand/Model

YUCHAI YCD4J22T-115 Turbo engine

Type

In LineDirect injectionFour-StrokeWater Cooling

Rated Power

85KW

Optional Engine

YUCHAI/YCD4T33T6-11(Stage Ⅲ 90KW

CUMMINS 74KW 4BT3.9-C100

CUMMINS EURO3 75KW QSB3.9-C100

EURO5 YUCHAI or EPA4 CUMMINS
