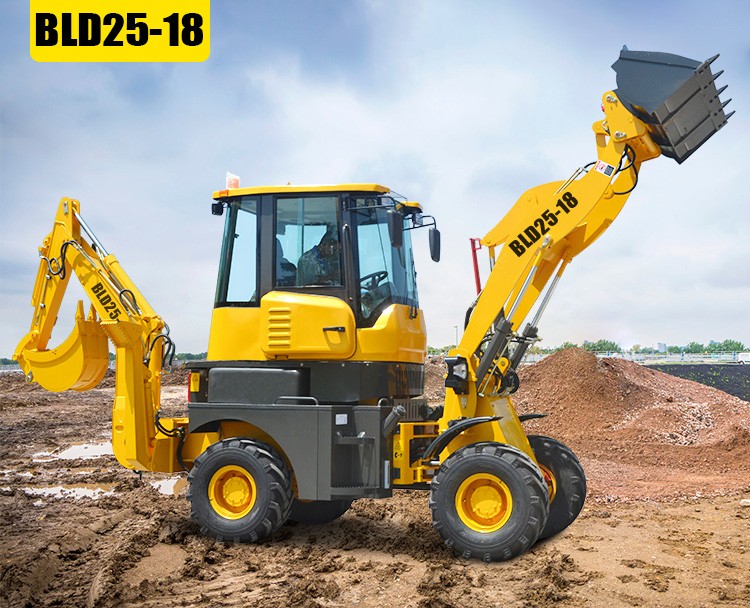

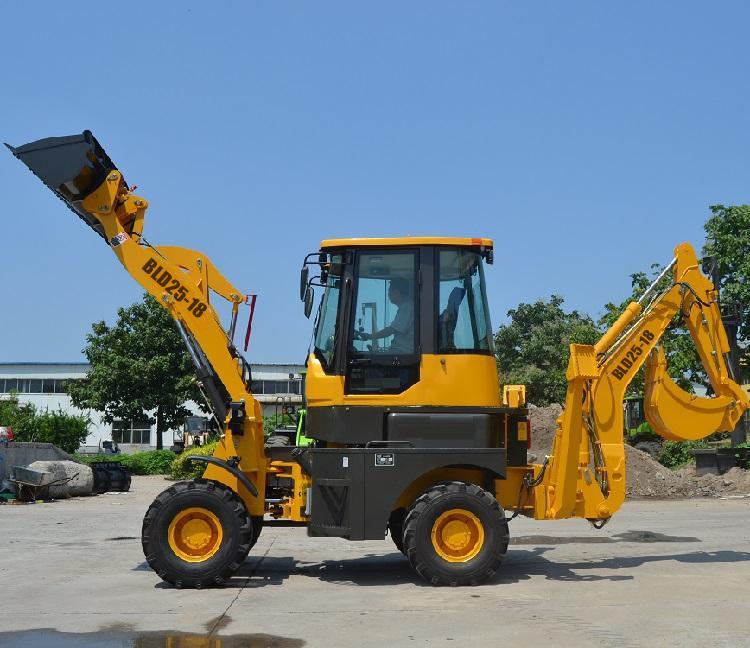

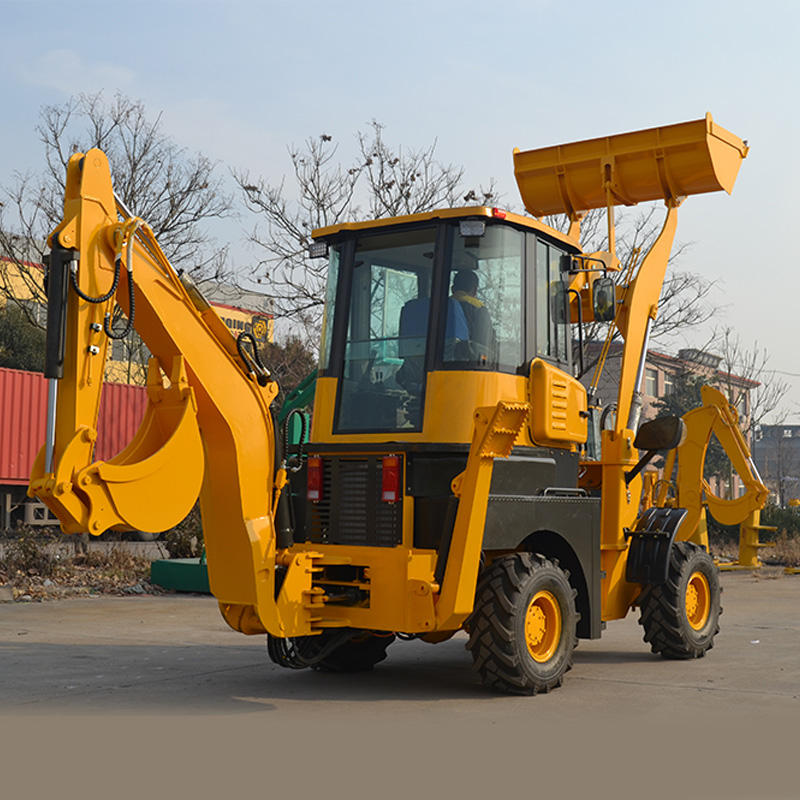

BLD25-18

Overall Operating Weight	4800KG
LWH	6800x2100x2980mm
Front bucket loading Lifting Capacity	1800KG
Bucket Dumping Height	2700mm
Backhoe Capacity	0.18m3
Max. Digging Depth	2600mm
Engine
Model	YUNNEI YN27GBZ Turbo
Rated Power	58KW
Steering System
Min. turning radius	4800mm
Pressure of the system	12Mpa
Torque Converter
Model	YJ265
Cooling Method	Oil-cooling Pressure Circulation
Gearbox
Type	Power Transmission
Gears	Two Gears forward, Two Gears reverse
Max. Speed	28Km/h
Tire Size	23.5/70-16
Brake System
Service Brake	Air Over Oil Caliper Brake
	External Type
	Self-regulation
	Self-balance
Emergency Brake	Operation Power Implementing brake
	Manual Operation Power Terminating Brake
