BLE35

Model

Kubota D1703  18.5KW/2200rpm

Max. Turque

97.4N.m/1500RPM

Type

In-line, water cooled, Mechanical pump, normally aspirated

Displacement

1.647L

No. of cylinder

4

Main performance

Machine Weight

3810kg

Swing Speed

0-11r/min

Traveling Speed(high/low)

4.4/2.4km/h

Grade ability

58%

Max. Bucket Digging Force

30.4KN

Arm Digging Force

18.2KN

Ground Pressure

32KPA

Hydraulic system pressure

22.5Mpa

Boom Length

2535mm

Arm Length

1400mm

Fuel Tank capacity

42L

Hydraulic Tank capacity

48.5L

Engine oil capacity

7L

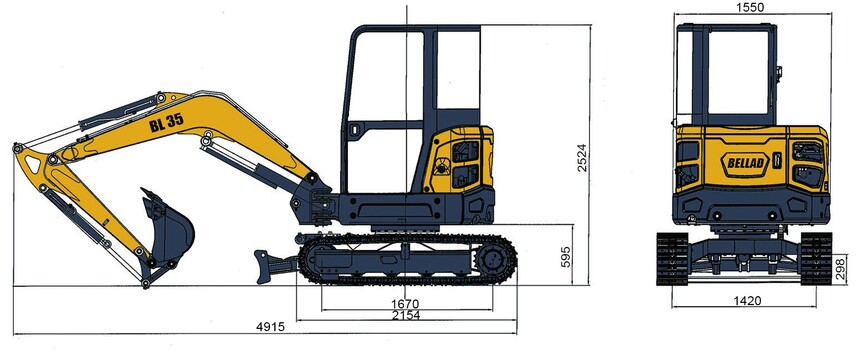

Overall dimension

Overall Length

4915mm

Overall Width

1720mm

Overall Height

2525mm

Mini Ground clearance

295mm

Track width

300mm

Length of track

2154mm

Track Gauge

1420mm

Swing radius at tail

860mm

Swing radius at front

2538mm

Height of blade

350mm

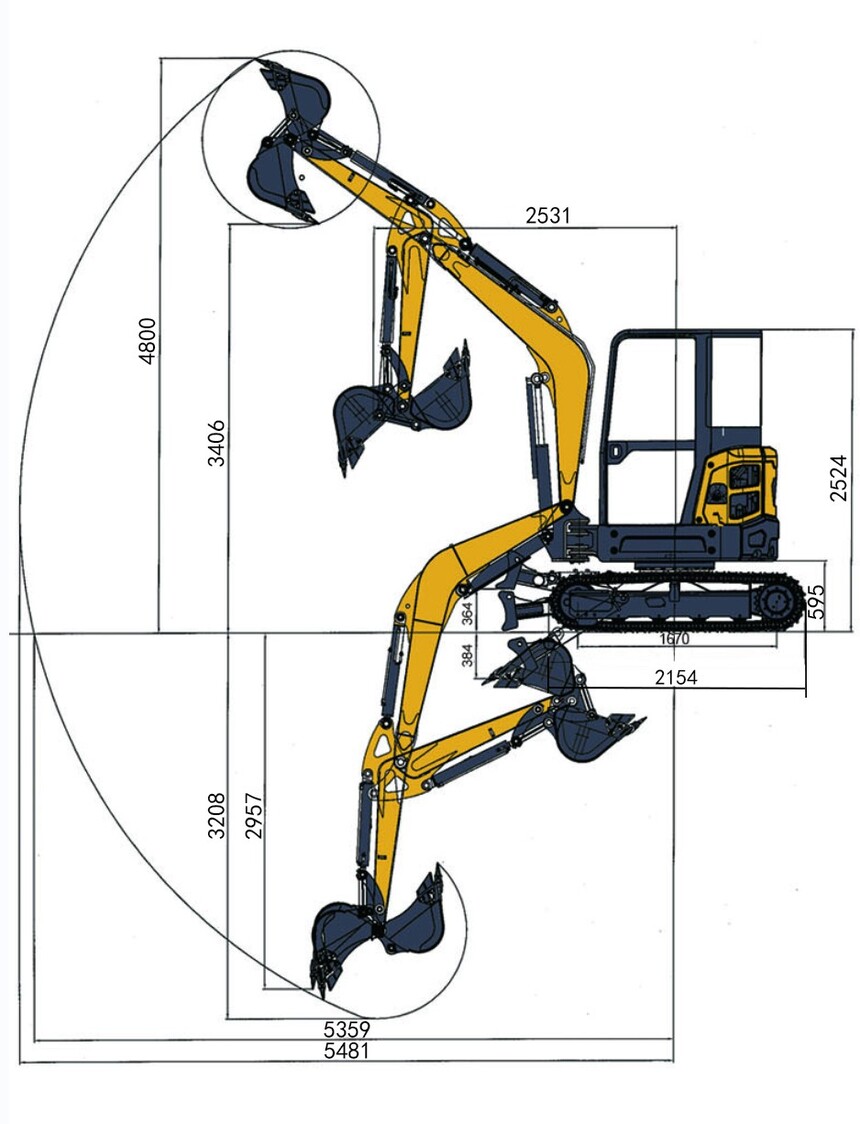

Operation parameter

Bucket Capacity

0.12

Max. Digging Radius

5480mm

Max. Digging Depth

3208mm

Max. Digging Height

4800mm

Max. Dumping Height

3406mm

Max. vertical digging depth

3208mm
