BLE20

SPECIFICATIONS
Machine model	BLE20
Operating Weight	4409lbs/2000kg
Bucket Capacity	0.07m3
Type of Tracks	Rubber track
Engine	KUBOTA D1105
Gradeabity	35
Hydraulically retractable undercarriage	990mm-1300mm
Swing Speed	0-9

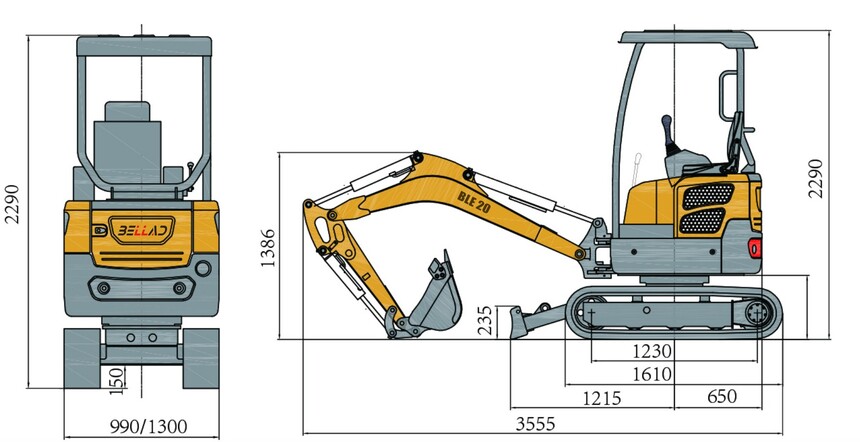

OVERALL DIMENSIONS
A. Overall Length	3555mm
B. Overall Width	990/1300mm
C. Overall height	2290mm
D. Chassis width	1300mm
E. Upper chassis ground clearance	150mm
F. Cabin height	2290mm

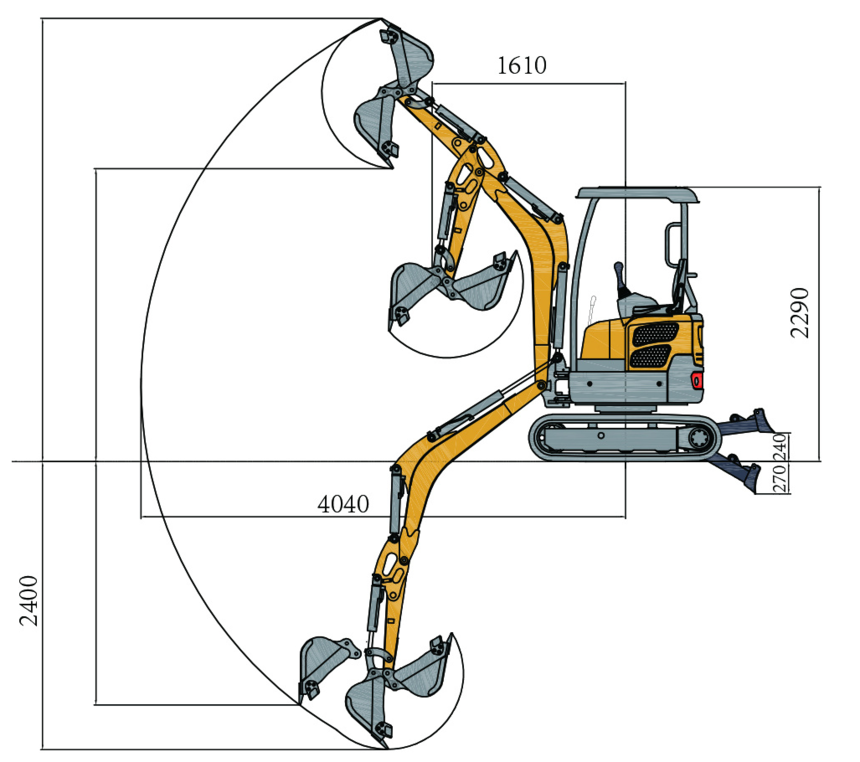

WORKING RANGE
G. Max.Digging Height	3700mm
H. Max.Dumping Height	2440mm
I. Max.Digging Depth	2400mm
J. Max.Vertical Digging Depth	2050mm
K. Max.Digging Radius	4040mm
L. Min.Swing Radius	1610mm
M. Tail Swing Radius	650mm
