BLE10

Engine

Engine Model

KOOP KD192F-1 7kW/3000rpm EURO V Emission

Type

Direct injection, wind cooled, natural intake

No. of cylinder

1

Main Performance

Swing Speed

r/min

0-13

Traveling Speed

km/H

2

Grade ability

%

30°

Traveling Tracking Force

kN

8.3

Bucket Digging Force

kN

7.2

Arm Digging Force

kN

4.6

Hydraulic System

Hydraulic system working pressure

Mpa

16

Hydraulic Pump

Gear Pump

Hydraulic pump flow

L/min

18

Fuel Tank Capacity

L

26

Hydraulic Tank Capacity

L

14.5 in Hydraulic tank 21.5 in Hydraulic system

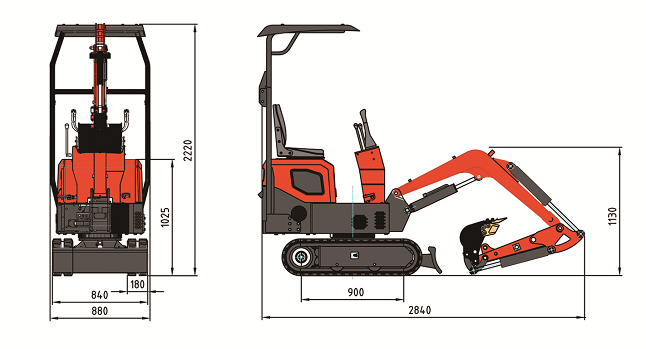

Overall Dimensions

Overall Length

mm

2840

Overall Width

mm

880

Overall Height

mm

2200

Counterweight Ground clearance

mm

385

Axle Base

mm

900

Track width

mm

180

Undercarriage width

mm

840

Undercarriage ground clearance

mm

132

Operation parameters

Operation Weight

KG

950

Bucket Capacity

m3

0.025

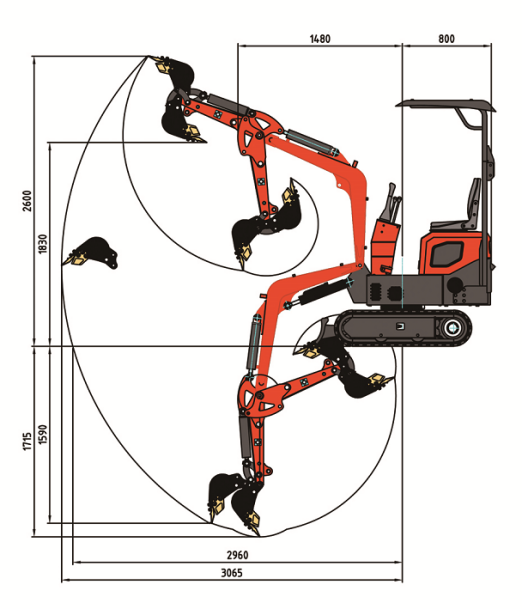

Max. Digging Radius

mm

3065

Max. Digging Depth

mm

1715

Max. Digging Height

mm

2600

Max. Dumping Height

mm

1830

Tail Swing Radius

mm

800
